Key Features / Performance Characteristics

The Series 410 Bi-fold door is an exceptionally strong bi-fold system designed to accept the heavy duty AWS Series 50, 51 and 52 doors.
Can accommodate compliant bi-fold panels up to 3000mm high.
Rebated door stiles give a flush appearance when the two doors meet and provide superior weather protection.
A variety of lever and lock options are available including proprietary multi-point and lever compression locking for added security.
Successfully tested for water resistance at 450Pa.

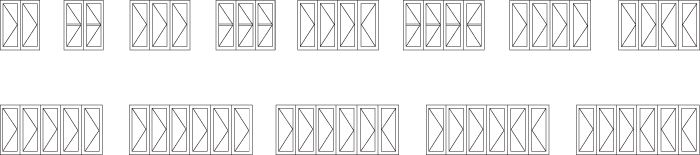

Can be configured to incorporate single or double entry doors.
Custom door co-extruded Santoprene bulb seal for maximum weather performance.
Door panels are supported on quad rollers running on heavy duty dual bottom rails.
As the doors are supported at the sill (sill rollers) we can fit overlights. Overlights can be fixed glass or opening sashes.

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

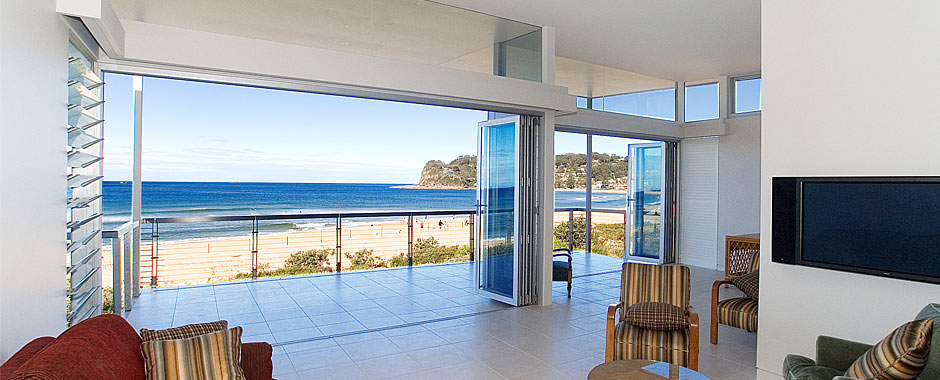

Series 410 FoldMASTER™ Bi-fold door external view

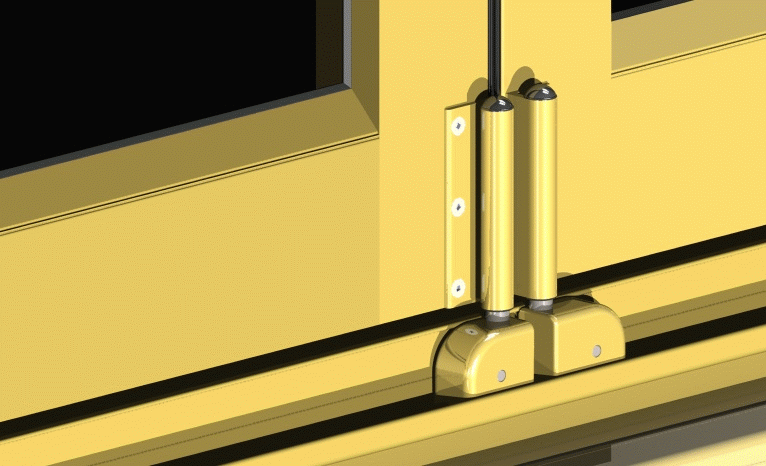

Running Gear

Heavy duty double bogey, bottom rolling running gear.

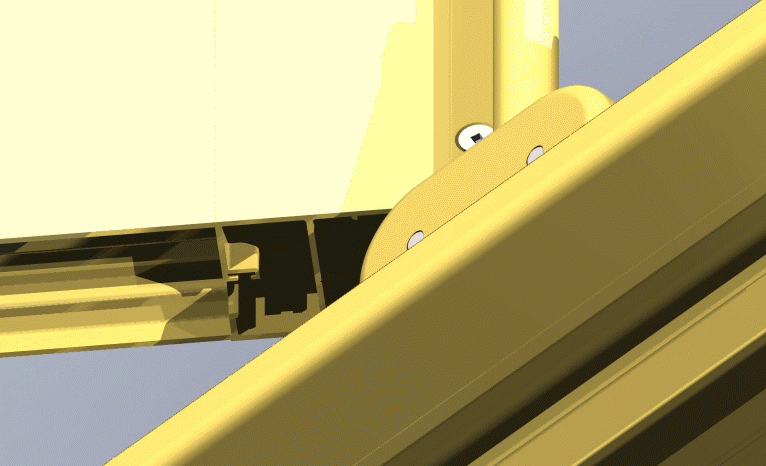

Bi-parting

Specially designed runners to inhibit clashing in a bi-parting configuration.

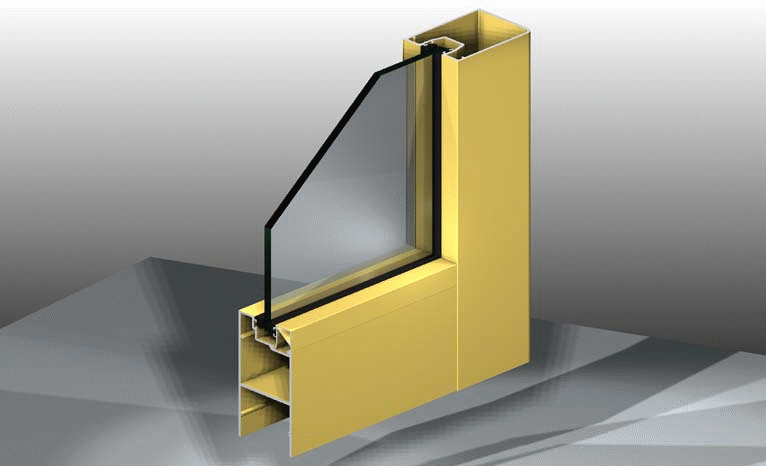

Door Beads

A range of various door beads available including double glazed option.

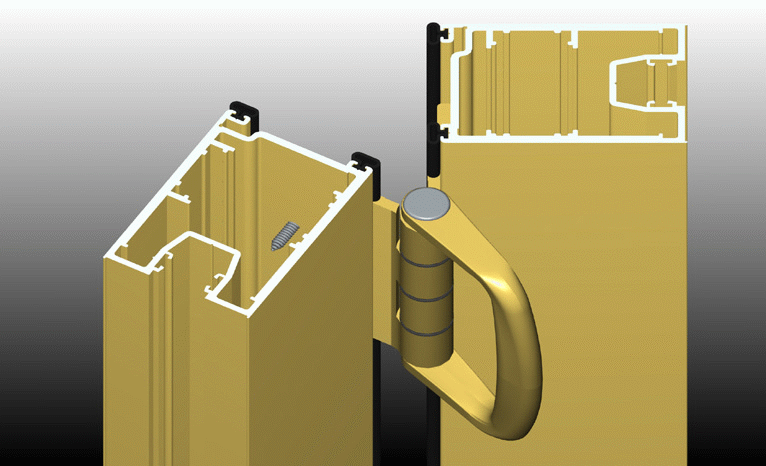

Hardware

A full range of hardware available including multiple 4-point locking mechanisms.

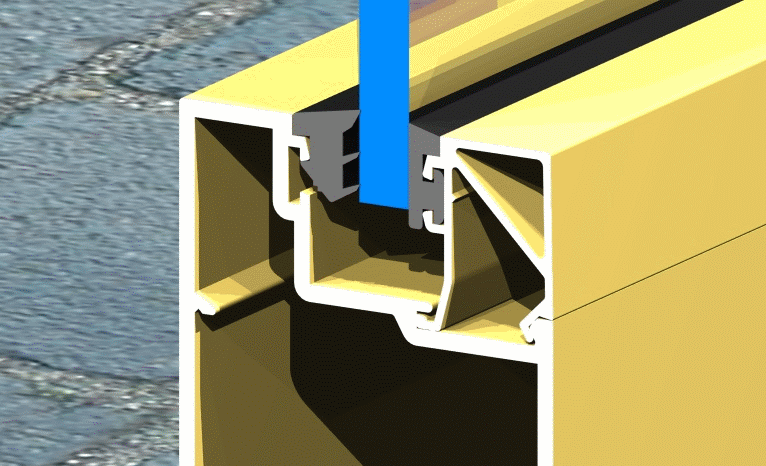

Seals

Multiple compression bulb seals ensure high weather resistance.
Door Seals

All door panels have heavy duty spigoting.
