Key Features / Performance Characteristics

The LouvreMASTER™ sun control shutter is designed for external sun and/or privacy control in fixed panels or moving panels in the form of a hinged, sliding or a Bi-folding door.
The LouvreMASTER™ system has been successfully tested for compliance with AS 2047 (wind and proof load). 1200mm wide door panel will withstand 2000Pa serviceability at 1/250 deflection and proof tested to 3000Pa.
There is an awning / casement sash that will accept LouvreMASTER™ and can be fitted into Series 400 and 466 frames.
The system has all blades working and has no dead or half blades.
Blades are 88mm by 14mm oval shape. The pitch for the blades can vary from 60 to 80mm depending on panel height.
The blades can be clamped in any position between open and closed with the use of an activation handle.

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

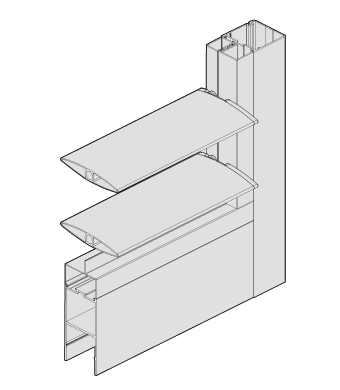

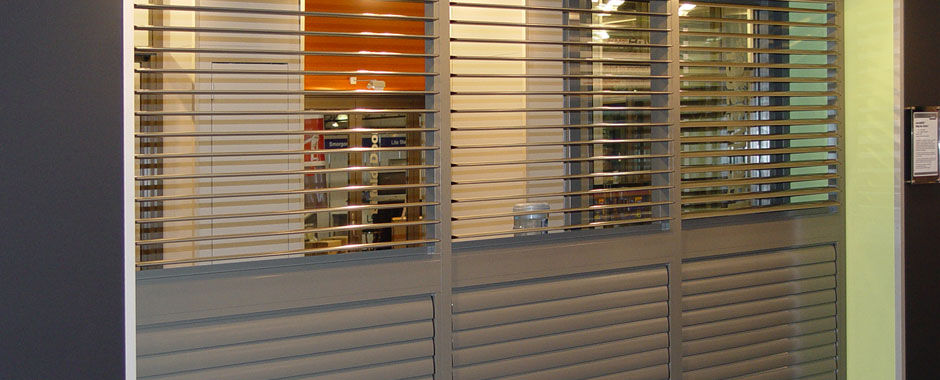

Series 417 LouvreMASTER™ Sun Control Shutter external view

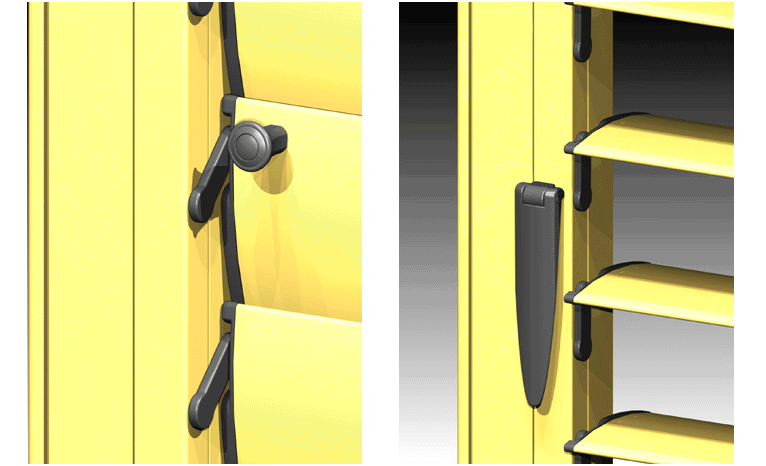

Blade Control

The 417 features a patented blade control system.

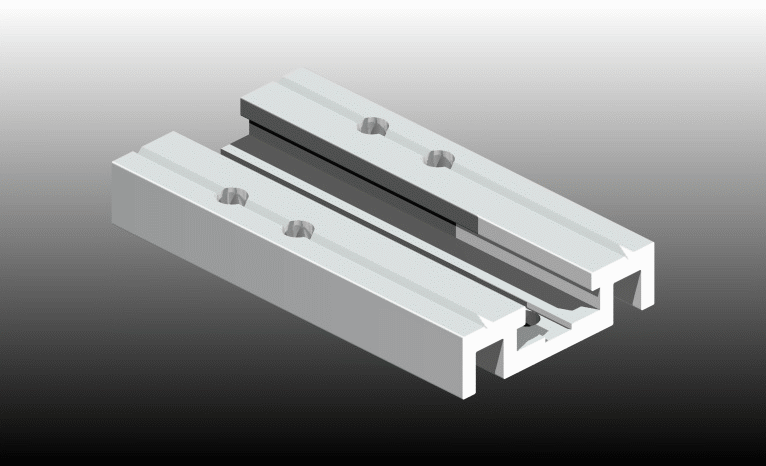

Guides

Specifically designed spigot system for unique bottom roller guide.

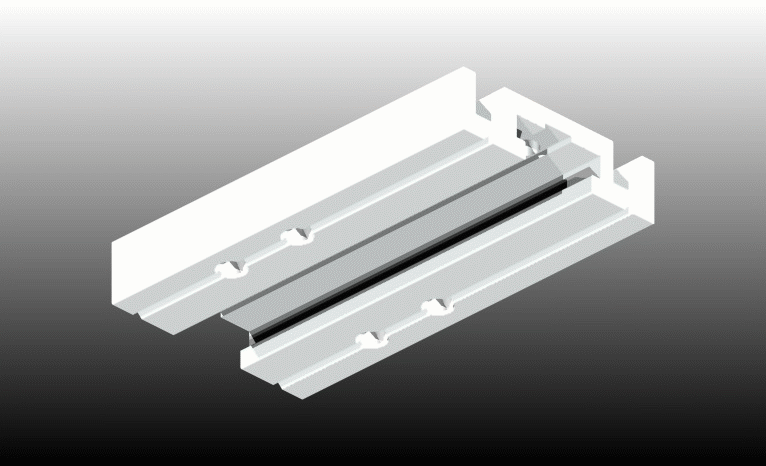

Strength

Specifically designed spigot system to maintain strength in top hung applications.

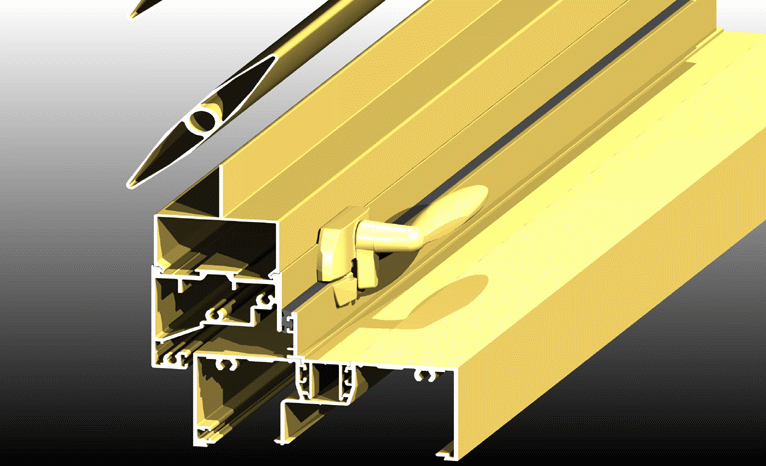

LouvreMASTER™

The 417 can be incorporated into awning sashes.

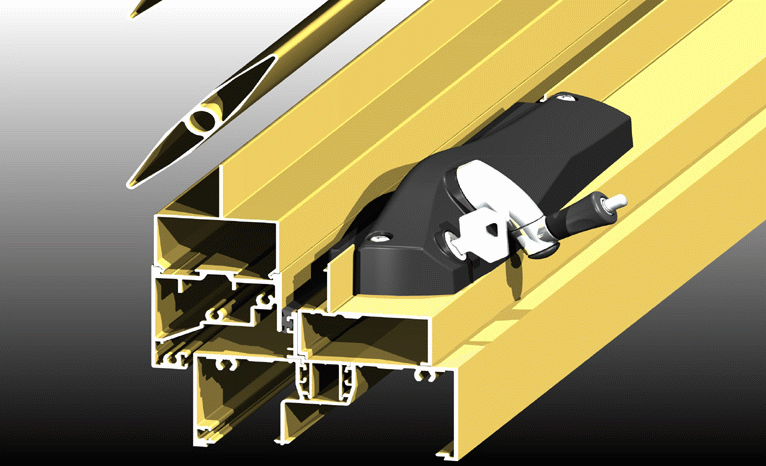

Winder Options

Various winder options available for awning sashes.

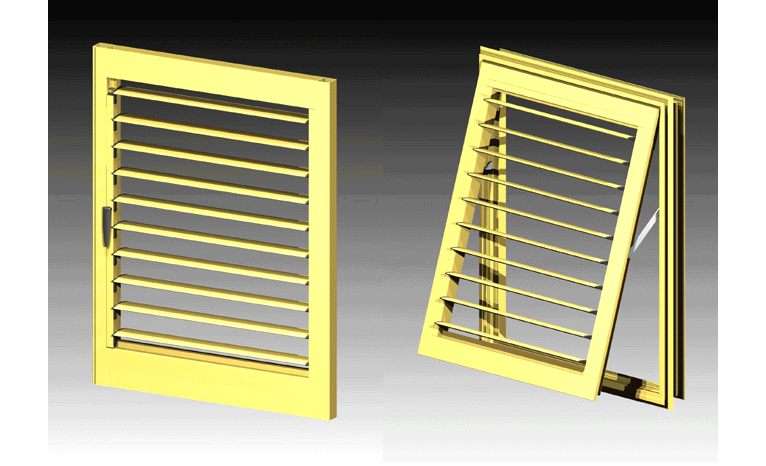

Louvres in Panels

We can fit the adjustable blades into door panels or awning sashes.
