    Commercial Framing | Series 424

    Double Glazed Centre Glazed 102mm Framing

Key Features / Performance Characteristics

  • Series 424 CentreGLAZE™ shopfront framing measures 102mm x 50mm and has been designed specifically to accept 24mm Insulating Glass Units (IGUs).

  • The 28mm deep glazing pocket is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing tolerance).

  • This deep glazing pocket provides a 12mm bite as required by the IGU manufacturers and ensures compliance with glass warranties.

  • Reinforced tall glazing bead at sill tolerate high wind loads.

  • True captive glazing wedge allows reglazing from inside - ideal in elevated applications.

  • The captive wedge also offers increased security.

  • Glazing wedges are recessed into the framing for a clean aesthetic.

  • Wide range of sub-sills to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.

  • Sub-head and two piece sub-jambs.

  • Numerous door thresholds including weather resisting thresholds for external and internal swing doors.

  • Designed for use with Series 50, 51 and 52 commercial doors.

  • Compatible with Commercial and Architectural Series systems.

Render 424
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 24mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au


Series 424 CentreGLAZE™ framing external view

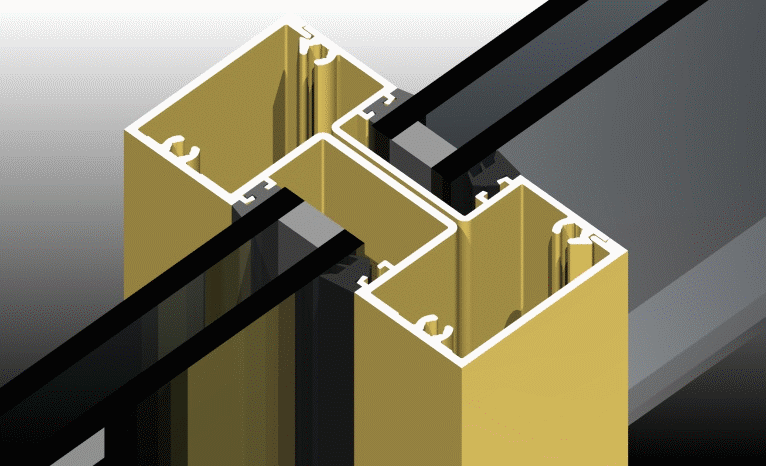

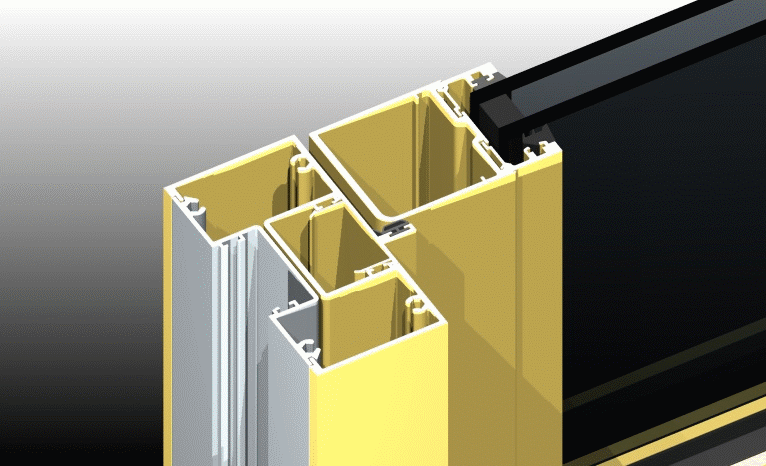

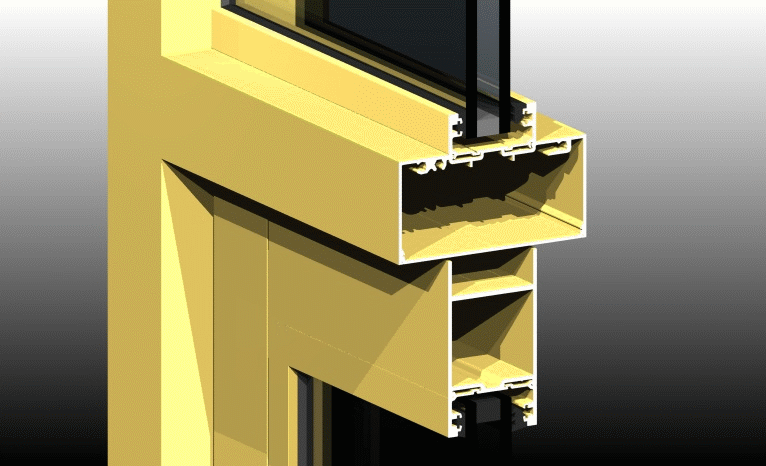

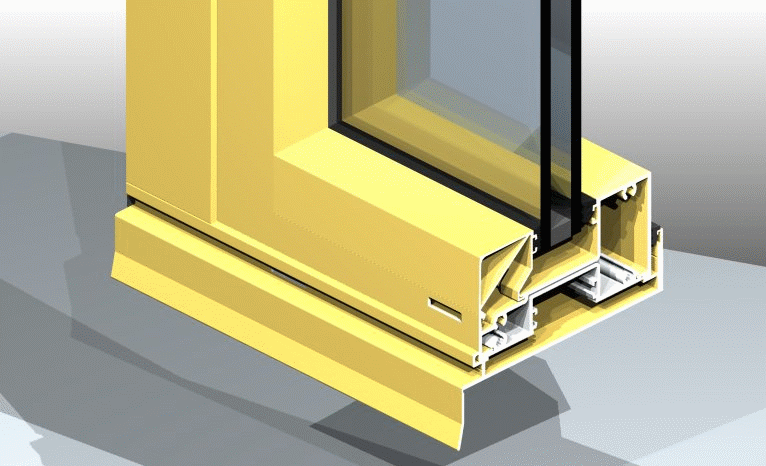

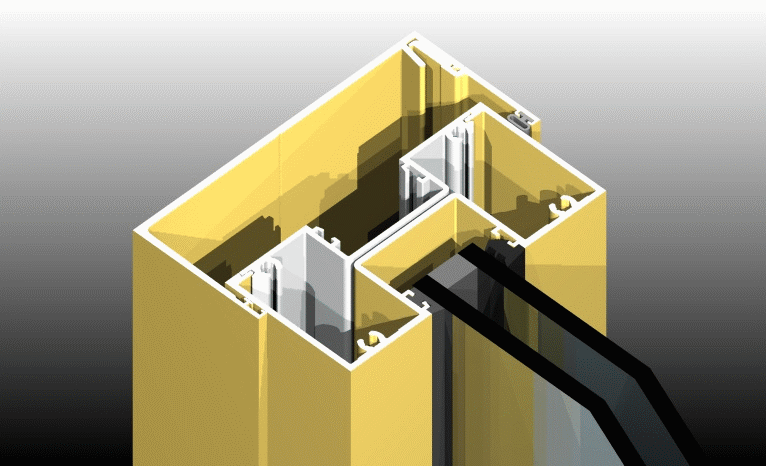

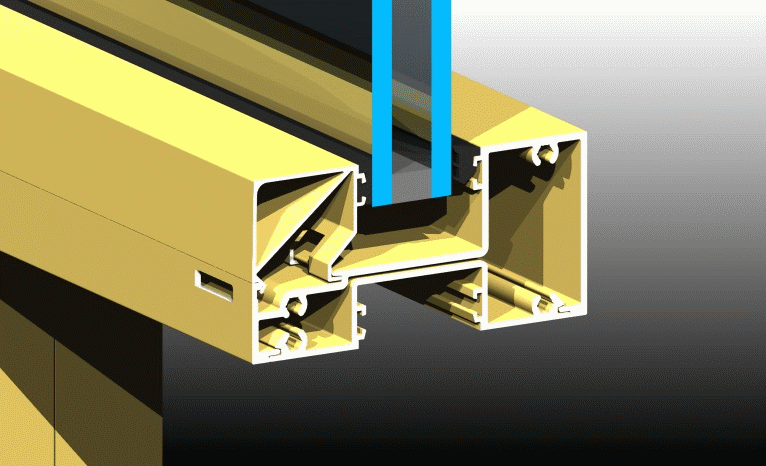

Features Overview

  • Framing

    All 424 framing is designed to accept IGUs up to 25mm.

    All 424 framing is designed to accept IGUs up to 25mm.<br /> All 424 framing is designed to accept IGUs up to 25mm.<br />
  • Strength

    Heavy door panel hinges can be reinforced with backing plates.

    Heavy door panel hinges can be reinforced with backing plates.<br /> Heavy door panel hinges can be reinforced with backing plates.<br />
  • Sub-Framing

    Sub-sill, head and jambs available.


    Sub-sill, head and jambs available.<br /><br /> Sub-sill, head and jambs available.<br /><br />
  • Glazing

    We can also double glaze doors and COC highlights.

    We can also double glaze doors and COC highlights.<br /> We can also double glaze doors and COC highlights.<br />
  • Mullions

    Various mullion details for site windload conditions.

    Various mullion details for site windload conditions.<br /> Various mullion details for site windload conditions.<br />
  • Adapters

    Reinforced glazing bead standard on Series 424. Spandrel adapter also available, as detailed.

    Reinforced glazing bead standard on Series 424. Spandrel adapter also available, as detailed. Reinforced glazing bead standard on Series 424. Spandrel adapter also available, as detailed.
