Elevate™ Aluminium Systems

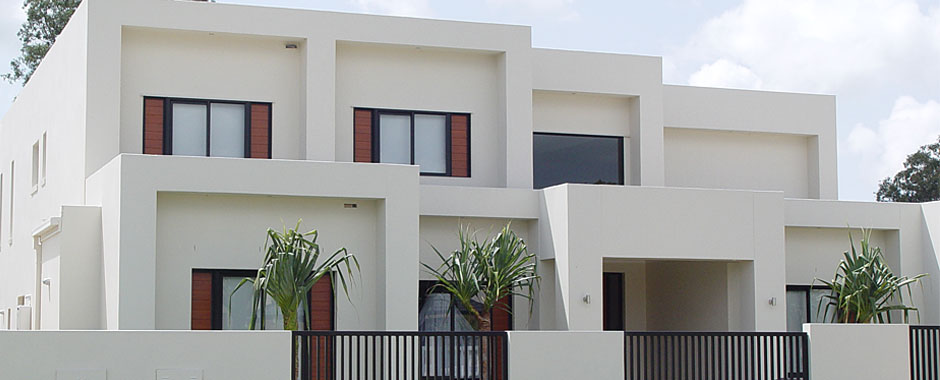

  • Hero 452
    Commercial Series | Series 452

    Commercial Sliding Window

Key Features / Performance Characteristics

  • Series 452 Sliding windows incorporate 17mm thick sliding window sashes fitted into CentreGLAZE™ framing using a custom head and sill and an inlay adapter.

  • Double sash design with the external sash fixed.

  • Both fixed and opening sashes can be installed, replaced and/or reglazed from inside the building. This could be an important feature in elevated situations.

  • There is a large variety of window combinations possible (SF, FS, SFS or FSSF) with and without highlights/lowlights.

  • Sliding sashes can be fitted with a variety of latches and locks including centre multi-point lock.

  • The ventilation lock allows the opening sash to be key locked in the closed and partly open (ventilation) position.

  • Flyscreens can be clipped into the frame without unsightly rivets, metal clips or turnbuckles.

Render 452
Maximum Panel Height* 1600mm
Maximum Panel Width* 900mm
Maximum Glass Thickness ≤ 20mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au


Series 452 Commercial Sliding window internal view

Features Overview

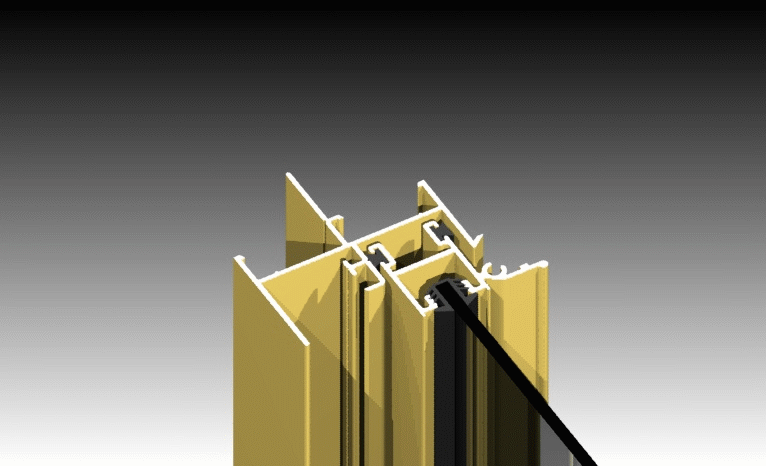

  • Jambs

    We offer a variety of jambs with integrated nailing fin / weather bar.


    We offer a variety of jambs with integrated nailing fin / weather bar.<br /><br /> We offer a variety of jambs with integrated nailing fin / weather bar.<br /><br />

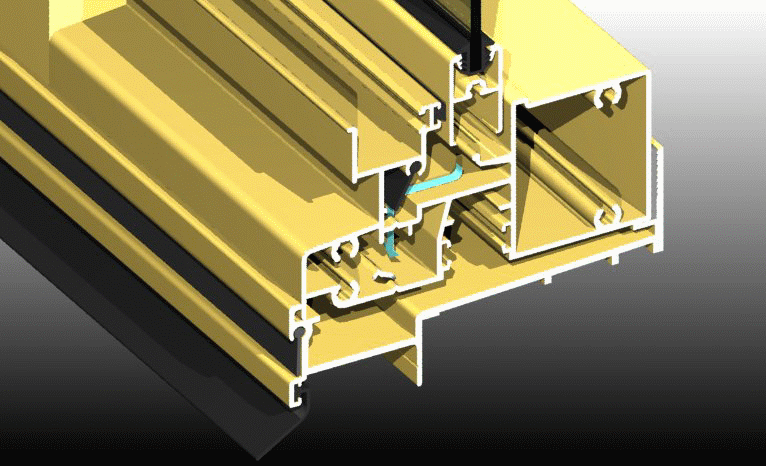

  • Sills

    Dedicated commercial sills with unique drainage system and custom nailing fin sub-sill.

    Dedicated commercial sills with unique drainage system and custom nailing fin sub-sill.<br /> Dedicated commercial sills with unique drainage system and custom nailing fin sub-sill.<br />

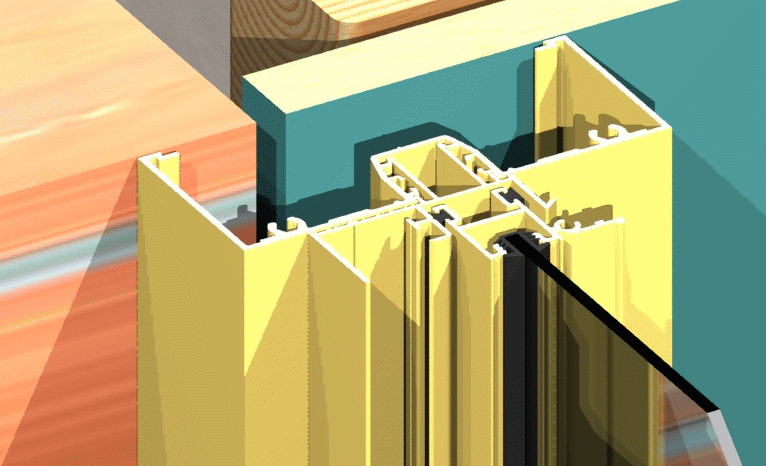

  • Frame

    Series 452 frame compared to conventional residential frame. Incorporates sashes from Series 504.

    Series 452 frame compared to conventional residential frame. Incorporates sashes from Series 504. Series 452 frame compared to conventional residential frame. Incorporates sashes from Series 504.

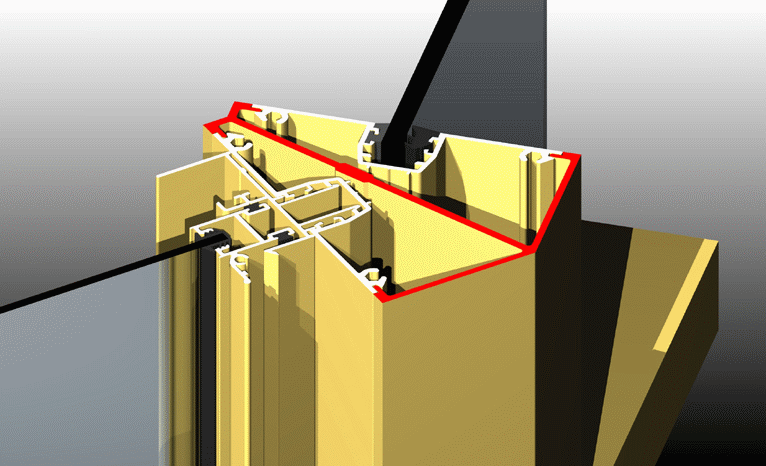

  • Coupling

    The 452 can be coupled and adapted in various junction details.


    The 452 can be coupled and adapted in various junction details.<br /><br /> The 452 can be coupled and adapted in various junction details.<br /><br />

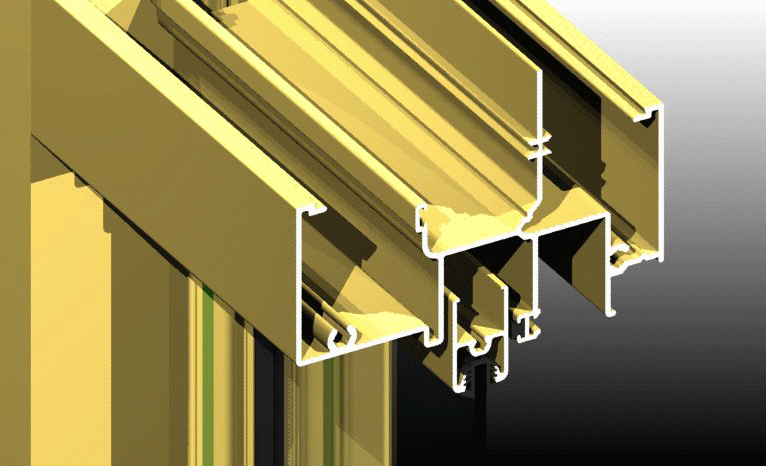

  • Transom Drainage

    Highlights transoms over sliders are sealed and drained to matched the overall window performance.

    Highlights transoms over sliders are sealed and drained to matched the overall window performance.<br /> Highlights transoms over sliders are sealed and drained to matched the overall window performance.<br />

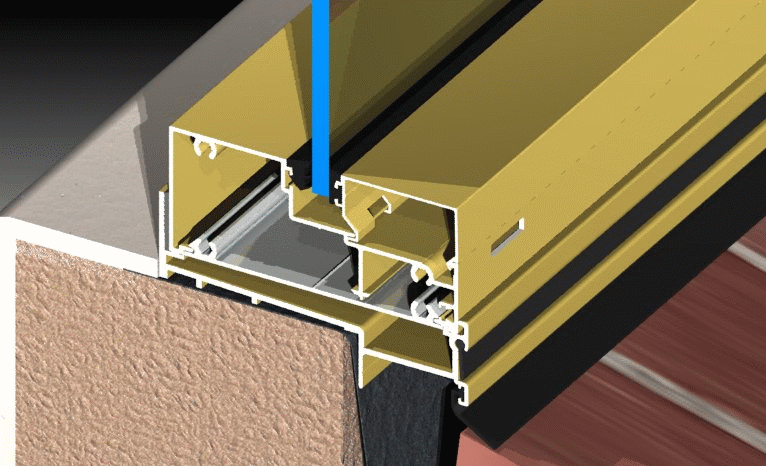

  • Fixed Lowlight Sill

    Fixed lowlights can be single or double glazed.


    Fixed lowlights can be single or double glazed.<br /><br /> Fixed lowlights can be single or double glazed.<br /><br />

Typical Configurations



  • Typical Configurations for Series 452
