Commercial Double-Hung Window
Key Features / Performance Characteristics
-
Vertical sliding double-hung sashes inlaid directly into commercial framing.
-
Flyscreens tuck into dedicated recess in the jamb inlay adapter, supported with concealed nylon clips.
-
Complies with AS2047. High water resistance 200Pa.
-
Sashes will bypass each other to allow cleaning of all glass from inside the building.
-
Custom heavy duty key lockable catch with die-cast keeper.
-
Fixed lowlights can be glazed from the inside in elevated situations by reversing the removable glazing beads and fitting custom captive wedge to the outside.
-
Nailing fin frame makes the product suitable for cavity brick and brick veneer construction.
| Maximum Panel Height* | 1100mm |
|---|---|
| Maximum Panel Width* | 1210mm |
| Maximum Glass Thickness | ≤ 7.52mm |
*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

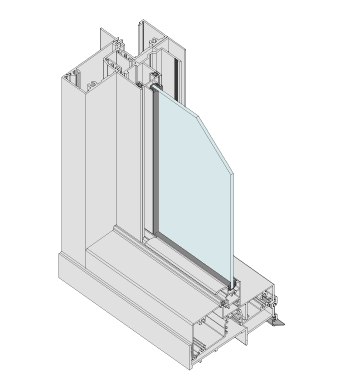

Series 453 Commercial Double-Hung window internal view
Features Overview
-

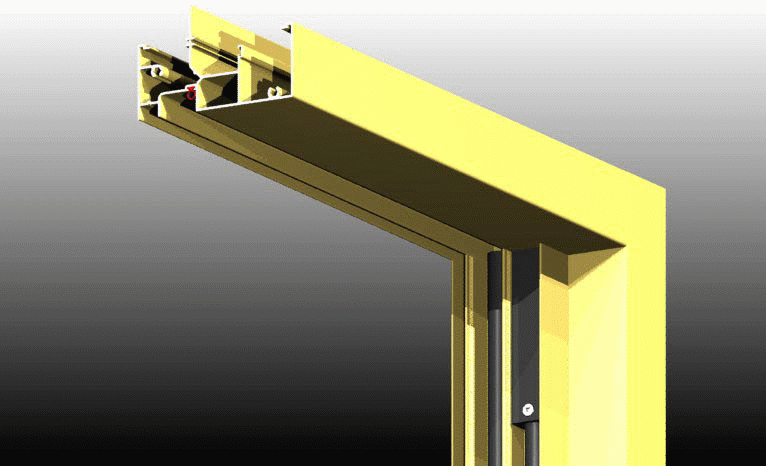

Framing
The 453 has a dedicated head.
-

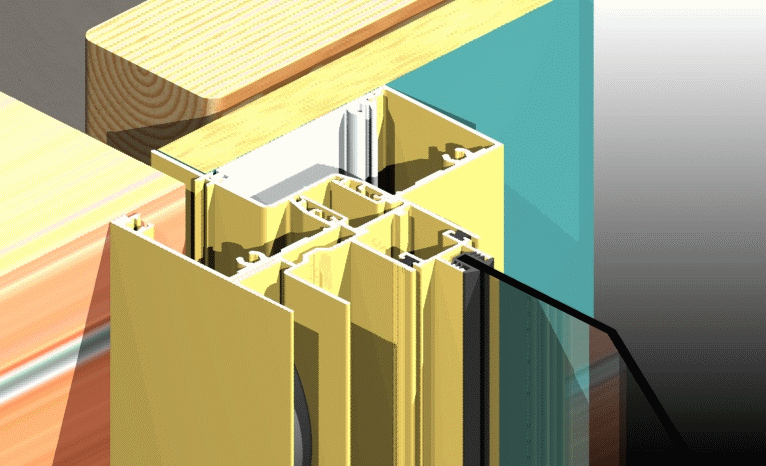

Jambs
We offer a variety of jambs with integrated nailing fin / weather bar.
-

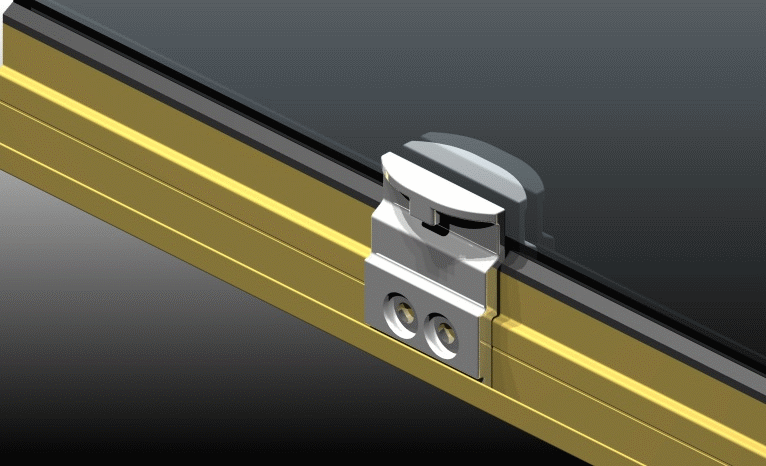

Standard ANDO™ Sash Lock
The standard heavy duty ANDO™ sash lock can be coloured to match framing.
-

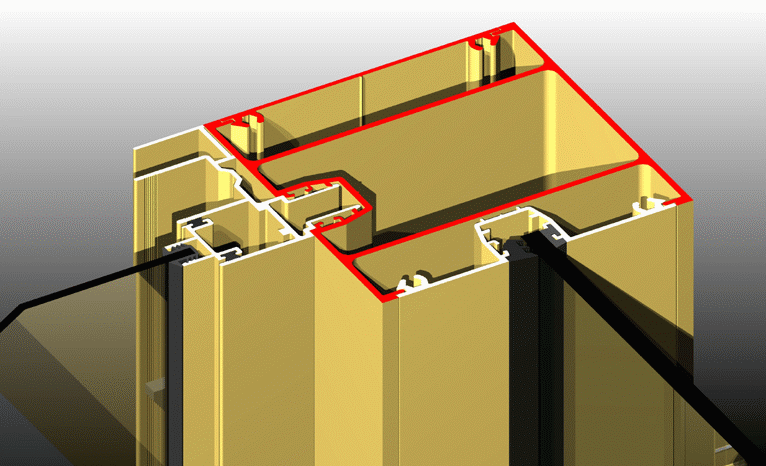

Coupling
The 453 can be coupled and adapted in various junction details.
-

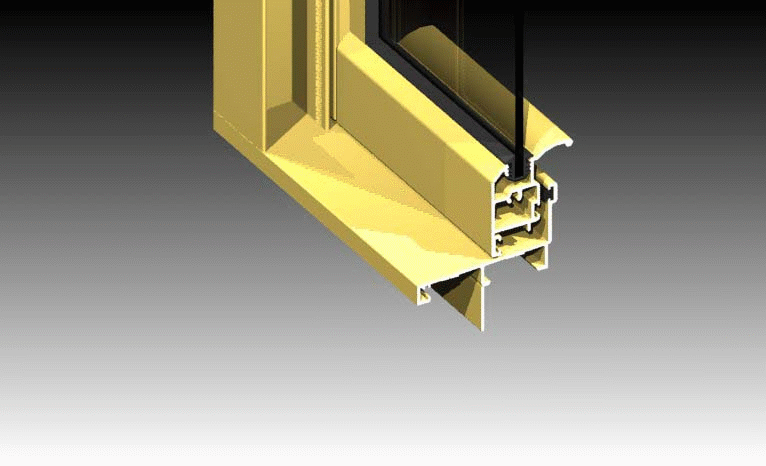

Frame
Series 452 frame compared to conventional residential frame. Incorporates sashes from Series 514.
-
Alternative Crescent Cam Lock
Series 452 frame compared to conventional residential frame. Incorporates sashes from Series 514.
