Key Features / Performance Characteristics

Residential awning sashes inlaid directly into shopfront framing.
Dedicated head and sill to accept awning sashes with manual chain winders with Standard 30mm or alternative 44mm nailing fin jambs. We also have a double glazed 44mm nailing fin frame for those projects with double glazed fixed lights.
Complies with AS 2047, with a high water resistance of 450Pa. Has a very low air infiltration that makes this product suitable for air conditioned buildings.
Besides the standard manual chain winders, the awning sashes can be fitted with concealed electric chain winders or cam handles.
Flyscreens can be fitted behind awning sashes with winders.
Wrap around light sashes will accept glass up to 6.76mm thick. We also have wrap around sashes that will accept 20mm IGUs. The heavy duty beaded sash will accept glass from 4mm to 20mm thick.

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

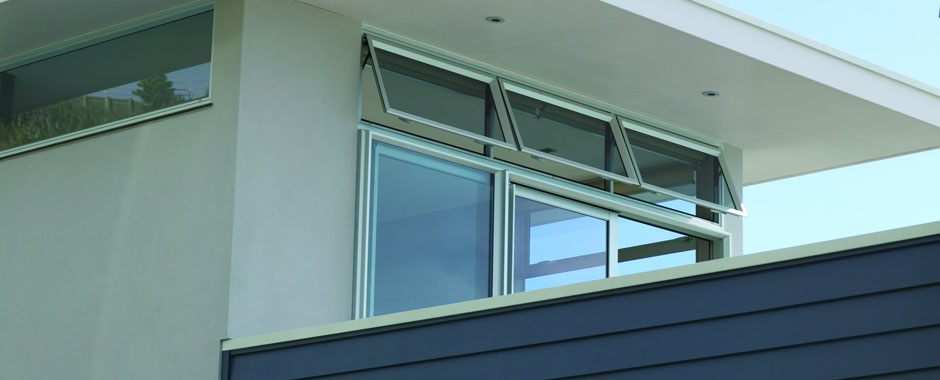

Series 456 Commercial Awning window external view

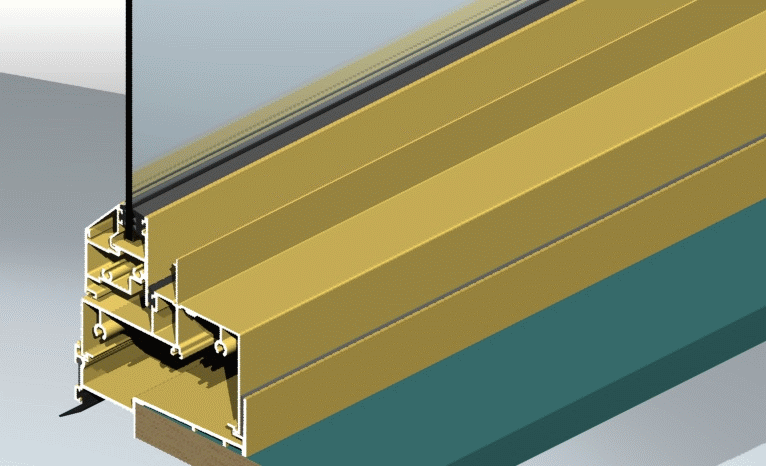

Sash Options

We offer a large variety of sash options that cover glass from 4mm to 20mm thick. Custom sub-sill included.

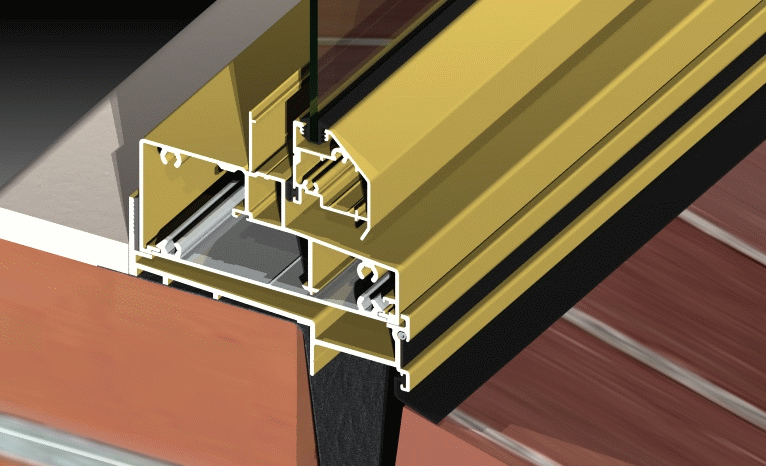

Sashes

Sashes hang on built-in hook hinges.

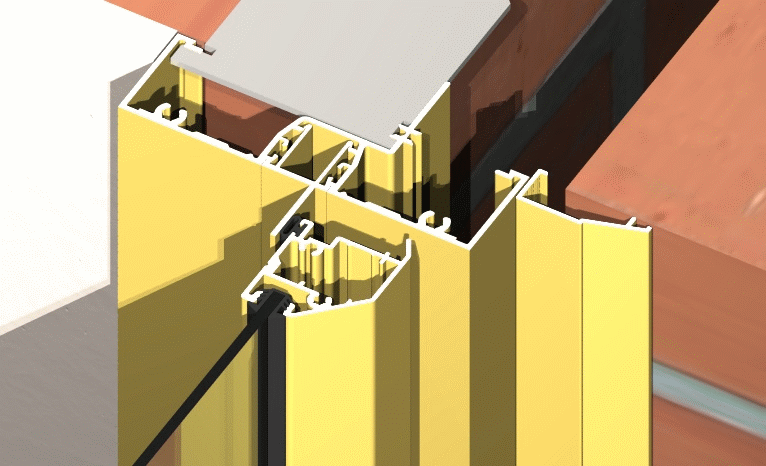

Jambs

We offer a variety of jambs with integrated nailing fin / weather bar.

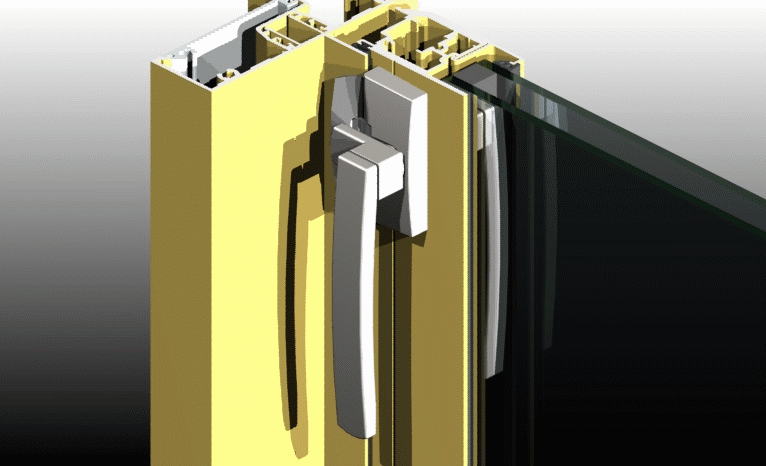

Hardware

Custom stainless steel ICON™ cam handles available for casement sashes.
Operation

For the ultimate finish we can fit concealed electric winders.
Winders

Manual chain winders are standard on Series 456 awning sashes.
