Elevate™ Aluminium Systems

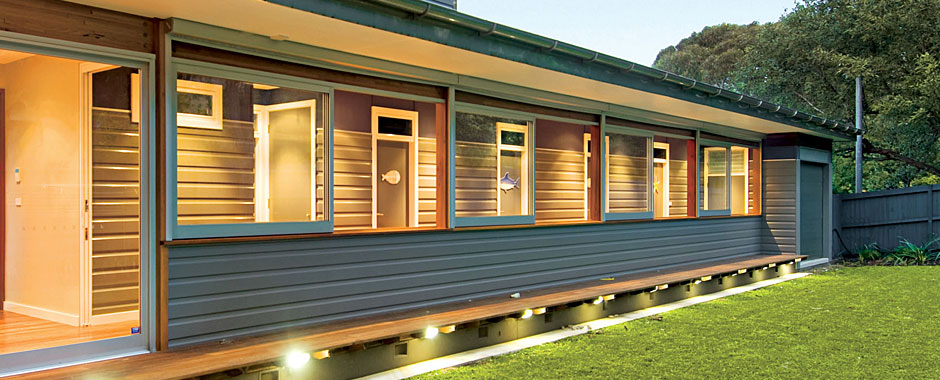

  • Hero 461
    Commercial Series | Series 461

    Apartment Sliding Window

Key Features / Performance Characteristics

  • High performance architectural sliding window system designed for high rise apartments.

  • The extra strong sashes allow large sash windows to be fabricated for high wind load areas.

  • Double sash design with a fixed internal sash.

  • Both fixed and opening sashes can be installed, replaced and/or reglazed from inside the building. This could be an important feature in elevated situations.

  • There are a large variety of window combinations possible (SF, FS, SFS or FSSF) with and without highlights/lowlights.

  • Sliders can be fitted with surface or mortice deadlocks.

  • Sashes run on custom lowline heavy duty double bogey wheel carriages.

  • As the moving sash is on the outside, we achieve very high water resistance - 600Pa. This window also complies with the air conditioning requirements of the Australian Standard.

  • Unwanted head recess is fitted with snap-in flat closer to ensure that the clean looks are maintained and air infiltration is improved.

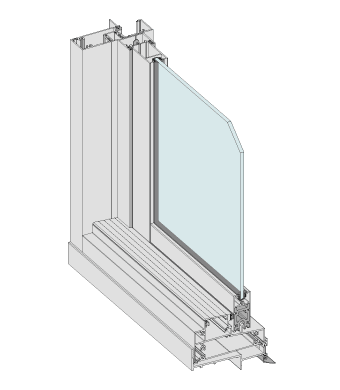

Render 461
Maximum Panel Height* 1600mm
Maximum Panel Width* 1300mm
Maximum Glass Thickness ≤ 20mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au


Series 461 Apartment Sliding window internal view

Features Overview

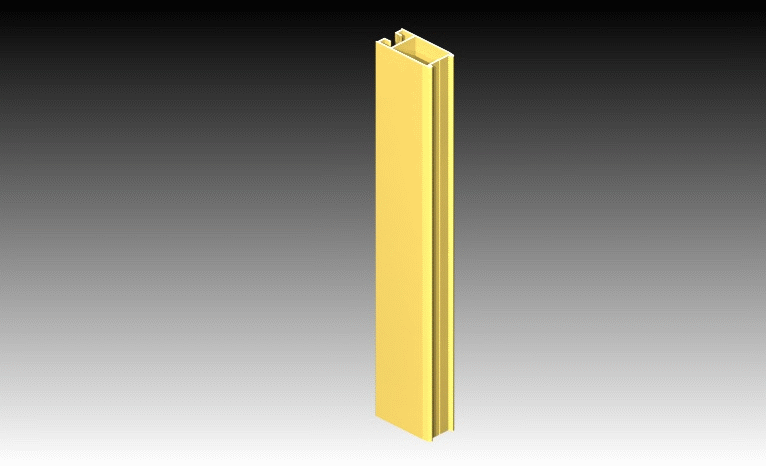

  • Sash Rail

    Unique sash rail stiffener, accepts high wind load and inhibits sash deflection.

    Unique sash rail stiffener, accepts high wind load and inhibits sash deflection. Unique sash rail stiffener, accepts high wind load and inhibits sash deflection.

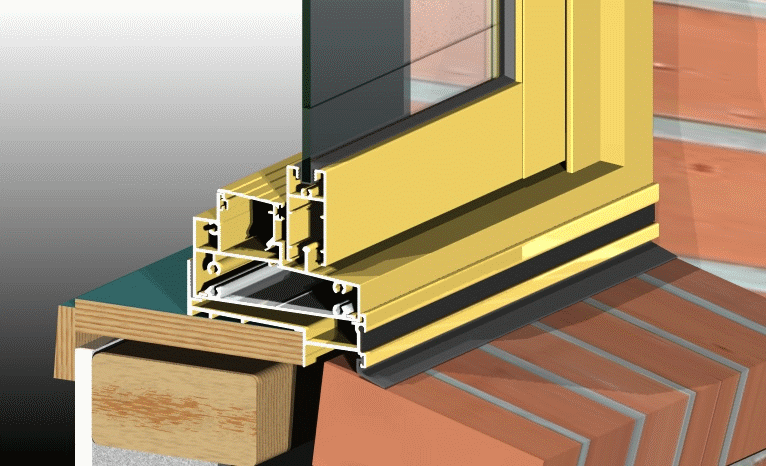

  • Sub-Framing

    Integrated sub-sill with nailing fin standard.

    Integrated sub-sill with nailing fin standard.<br /> Integrated sub-sill with nailing fin standard.<br />
  • Buffer Stop

    Tapered sash buffer stop to keep panel on the track.

    Tapered sash buffer stop to keep panel on the track.<br /> Tapered sash buffer stop to keep panel on the track.<br />

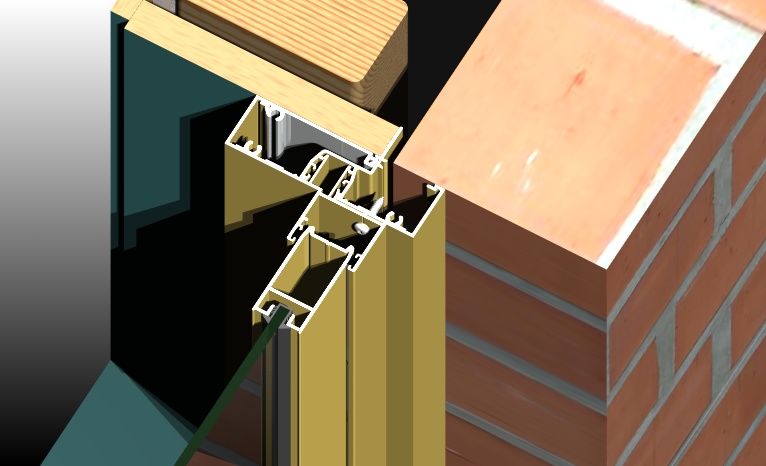

  • Transom

    Nailing fin jamb standard on Series 461. Available in 30mm wide or alternative 44mm.

    Nailing fin jamb standard on Series 461. Available in 30mm wide or alternative 44mm. Nailing fin jamb standard on Series 461. Available in 30mm wide or alternative 44mm.
  • Hardware

    Custom ANDO™ mortice lock with push button release. Face plate coloured to match.

    Custom ANDO™ mortice lock with push button release. Face plate coloured to match. Custom ANDO™ mortice lock with push button release. Face plate coloured to match.

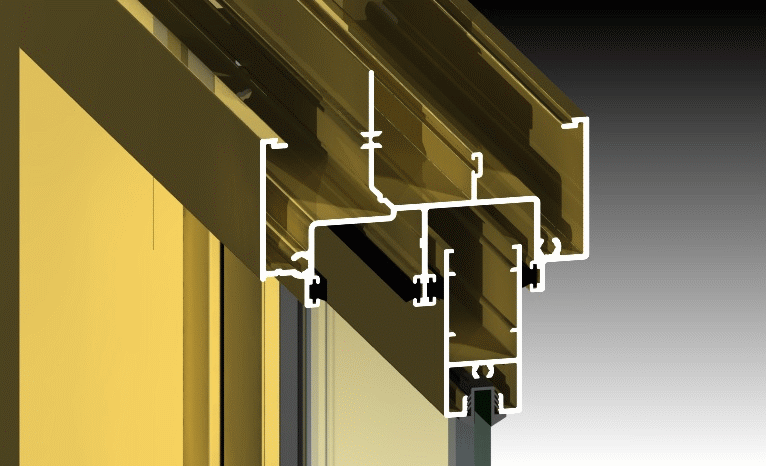

  • Highlight Transom

    Drains any water that gets in the back to the outside.

    Drains any water that gets in the back to the outside.<br /> Drains any water that gets in the back to the outside.<br />

Compatible Hardware

AWS hardware options designed for use with Series 461

prev
next

Typical Configurations



  • Typical Configurations for Series 461
