Architectural Double-Hung Window
Key Features / Performance Characteristics
-
This 102mm thick commercial grade double-hung window has been designed with bold frame lines and 30mm thick (strong) sashes that can carry heavy glass including 20mm IGUs.
-
The perimeter frame has been designed to make installation into brick veneer and cavity brick easier with built-in nailing fins (weather bars).
-
Extra strong sashes allow large sash windows to be fabricated for high wind load areas.
-
Both sashes can be hinged back into the room to allow cleaning of both sides of the glass from inside, without removing the fly screen.
-
Sashes can be secured with custom key or non-key locking cam handle.
-
Double-hung windows can be fitted with external flyscreens within the frame line, no turn buckles required.
-
Successfully tested for compliance and drainage at 450Pa water resistance.
| Maximum Panel Height* | 1050mm |
|---|---|
| Maximum Panel Width* | 1155mm |
| Maximum Glass Thickness | ≤ 20mm |
*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

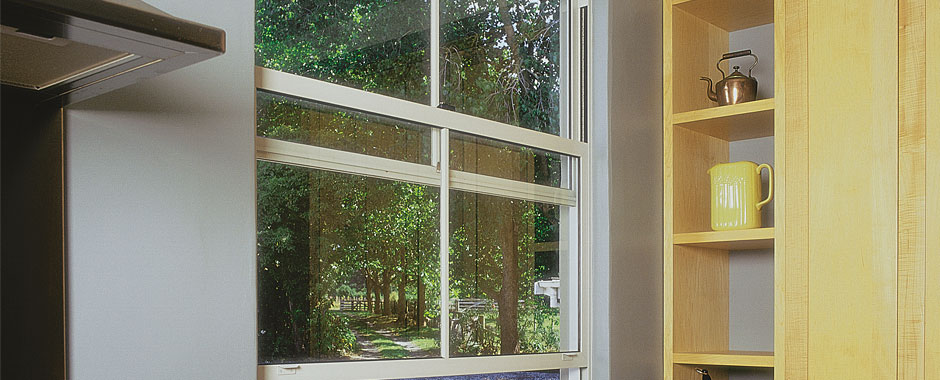

Series 463 Architectural Double-Hung window internal view
Features Overview
-

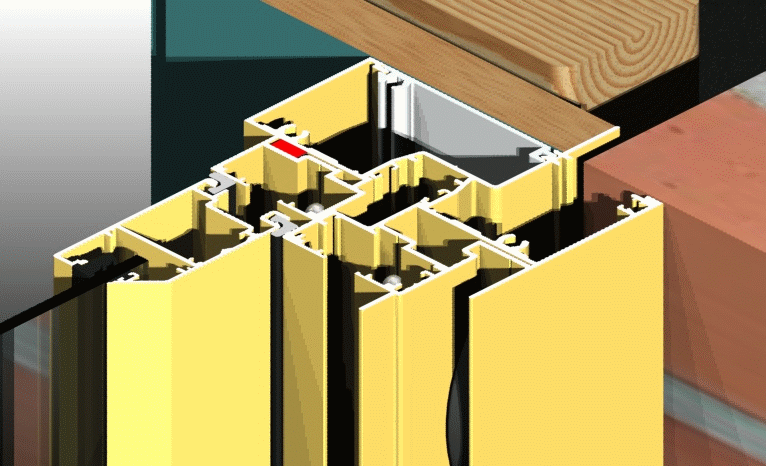

Nailing Fins
Most AWS Commercial Products can incorporate nailing fins for residential construction.
-

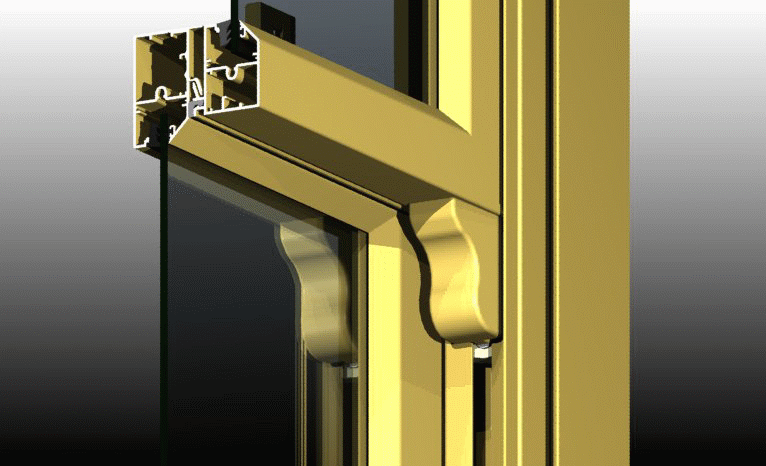

Sash Horns
Federation sash horns standard. Also available without sash horns.
-

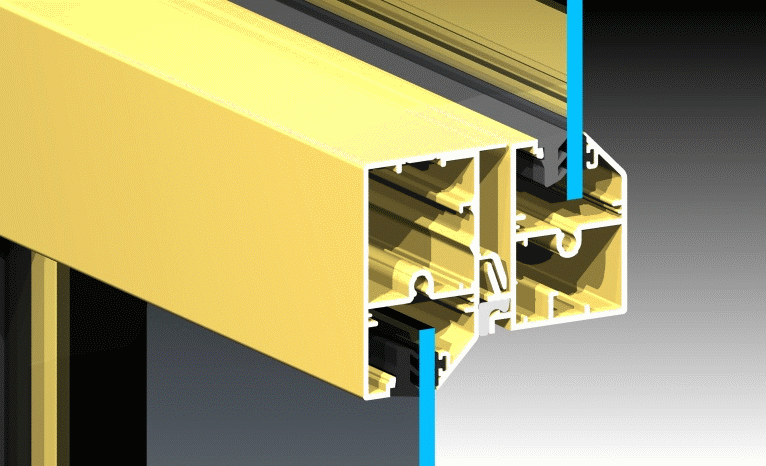

Glazing
Accepts all glazing types up to 20mm.
-

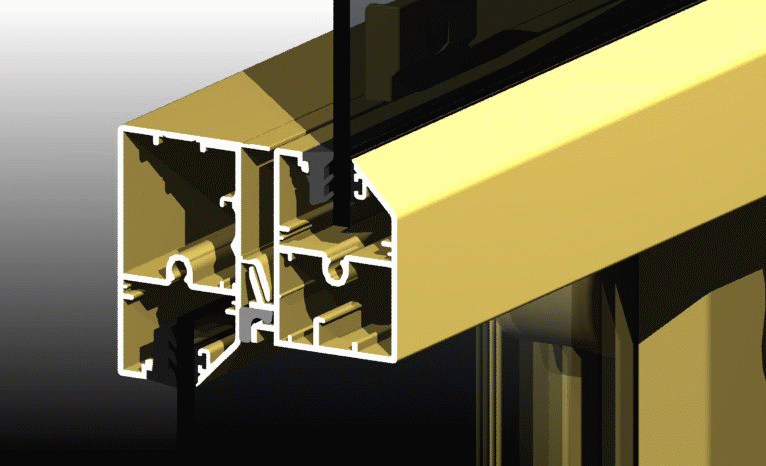

Sashes
Strong, bold sashes in comparison to typical residential products.
-

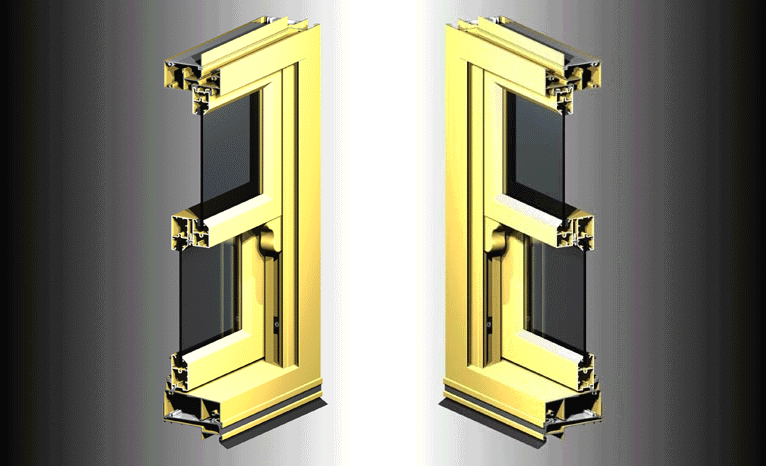

Cleaning
Unique tilt sash feature allows for internal cleaning.
-

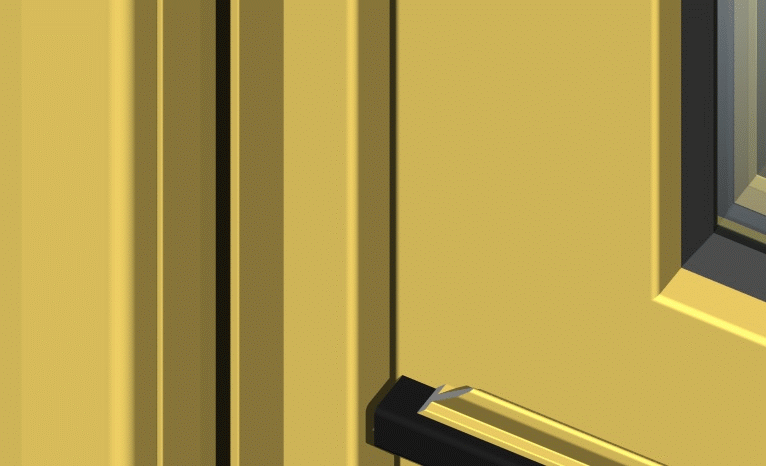

Sash Latch
Tilt sashes can be released with spring loaded finger pulls.
