Key Features / Performance Characteristics

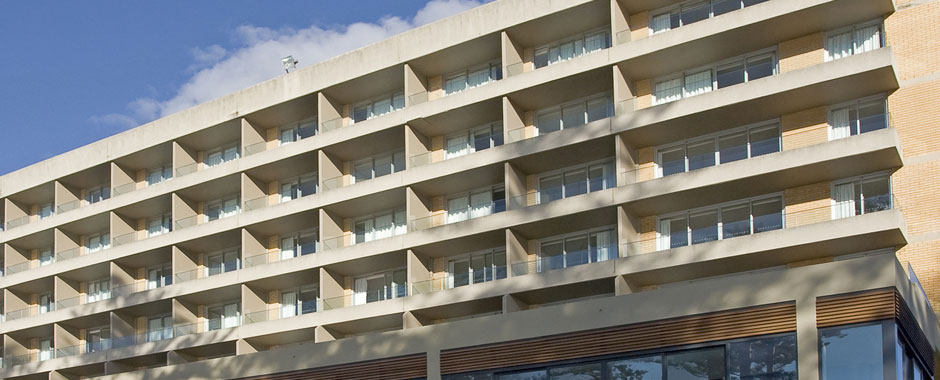

High performance architectural sliding door system designed for high rise apartments.
The 101.60mm frame is compatible with CentreGLAZE™ and FrontGLAZE™ framing and can be coupled together in runs of framing and doors.
The door is ideal for projects that require very high water resistance when the door panels are not excessively big.
As the moving sash is on the outside, we achieve very high water resistance - 600Pa. Also complies with the air conditioning requirements of the Australian Standard.

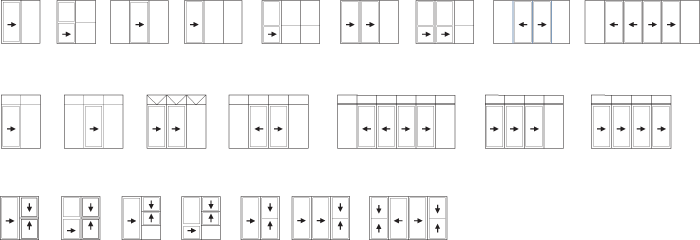

There are a large variety of door combinations possible (XF, FX, FXF, XFF, FFX and FXXF).
We can fit sliding flydoors on the inside.
Doors can be fitted with surface or mortice deadlocks.
Sashes run on custom lowline heavy duty double bogey wheel carriages.
Tall bottom rail designed for added strength and makes the doors proportionally correct.
Unwanted head recess is fitted with snap-in flat closer to ensure that the clean looks are maintained.
Matching Series 461 sliding window available.

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

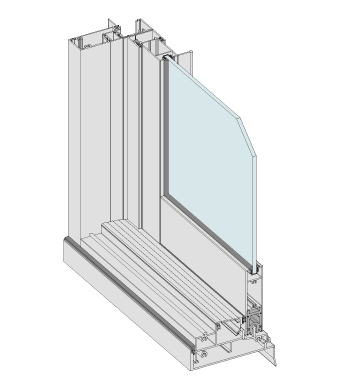

Series 471 Apartment Sliding door internal view

Configuration

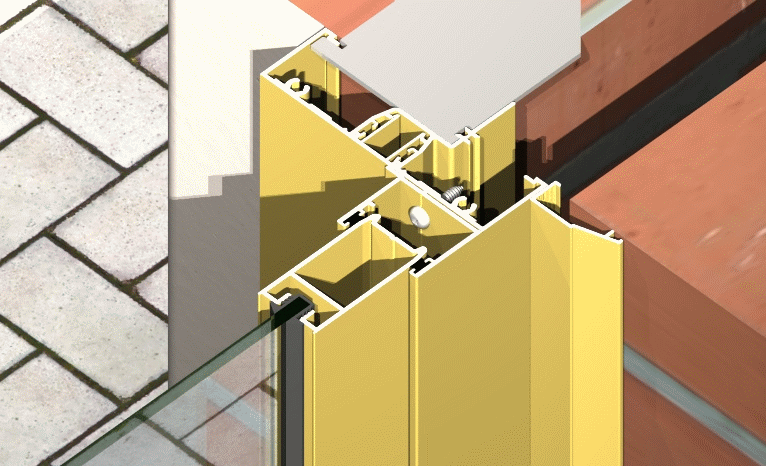

Reinforced head and top rail when required. Designed to withstand high wind loads.

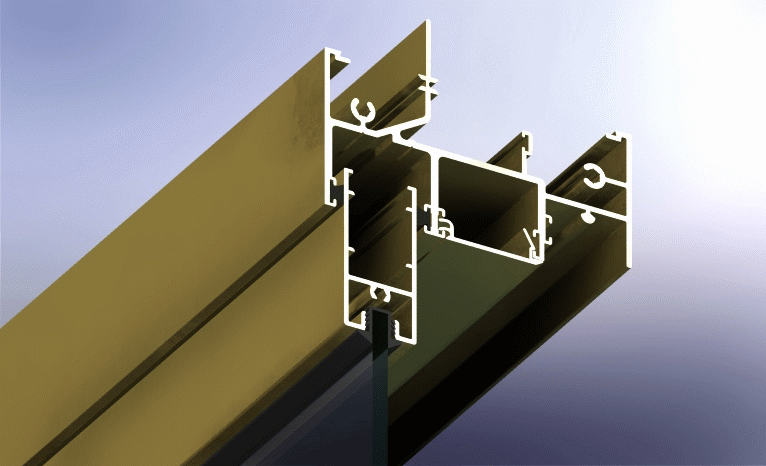

Rail Stiffener

Optional top rail stiffener for high wind load areas.

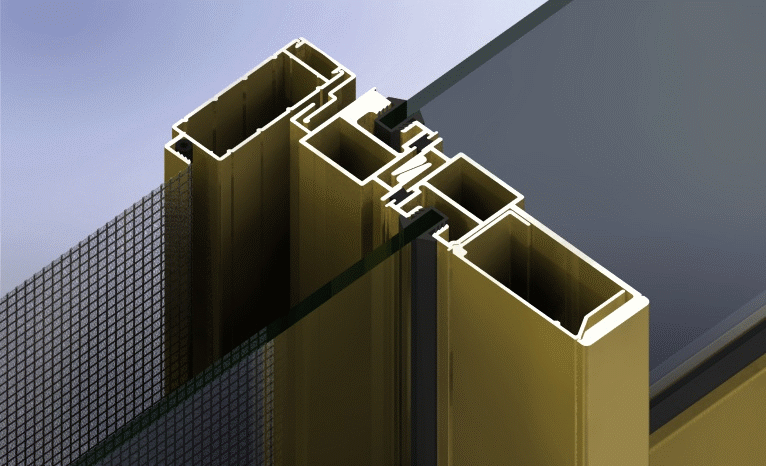

Interlocking Flydoor

Custom interlocking stile accepts interlocking flydoor stile.

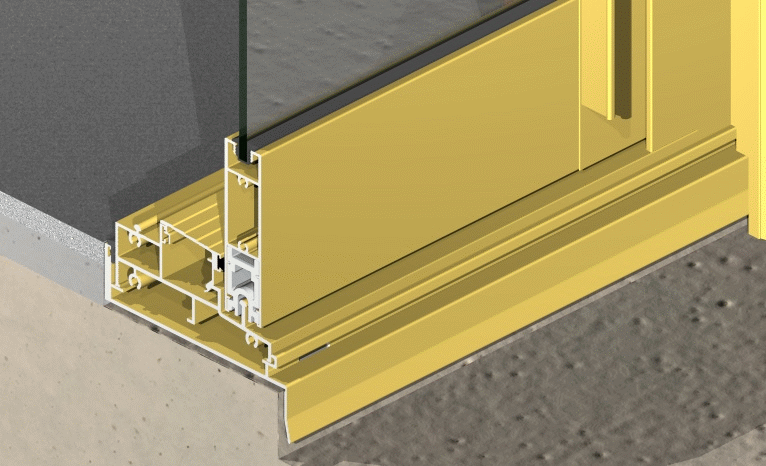

Tall Rail

Tall bottom rail standard on series 471 - reinforced as required.
Buffer Stop

Tapered sash buffer stop to keep panel on the track.
Flydoor Option

Optional flydoor available on the inside.
