Commercial Series | Series 52
Commercial Door (Double Side Beaded)

Key Features / Performance Characteristics

Series 52 doors are 50mm thick for added strength.
Series 52 doors have removable snap-on glazing beads on horizontals and verticals (both sides).

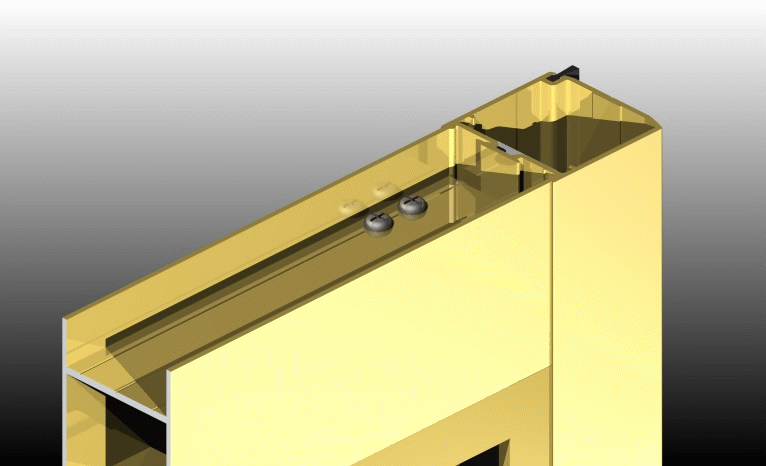

Stile to rail joint is securely fixed with custom spigot assembly.
Spigots are secured to rails with 10# spline screws.
Door glass can be blocked and fitted with adjustable setting block.
Series 52 doors will accept glass up to 24mm thick.
Horizontal rails can be fitted with square or splayed glazing beads.
19mm high glazing beads ensure that the glass gets the right bite.
Can be security glazed with captive external glazing wedge.
Four midrail options 50mm and 115mm deep with single external bead. Plus 125mm and 200mm midrails with four glazing beads.
Lock stile wide enough to accept most lock types.
Rebated French meeting stiles.

Maximum Panel Height*	3000mm
Maximum Panel Width*	1000mm
Maximum Glass Thickness	≤ 24mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

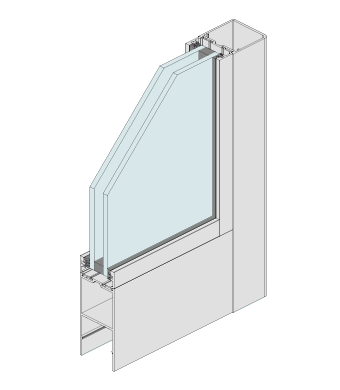

Series 52 Commercial Door (double side beaded) external view

Features Overview

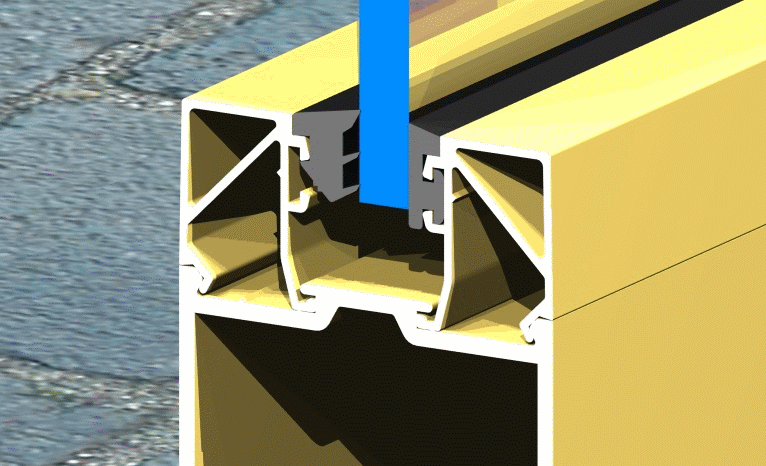

Beads

Variety of beads available for single glazed and double glazed applications.

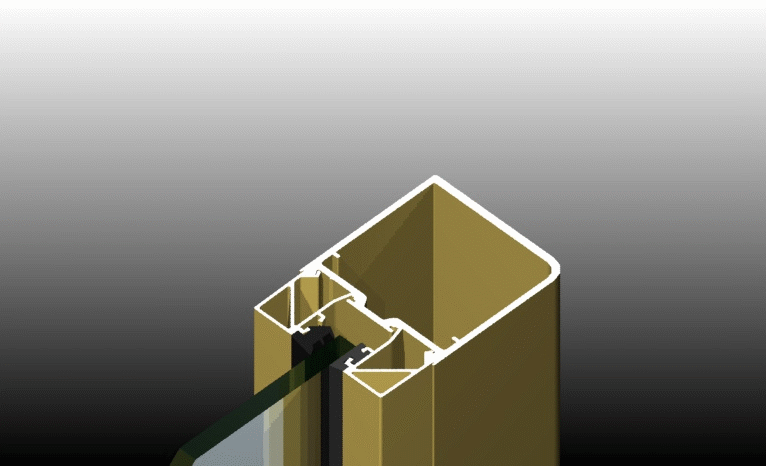

Spigots

Heavy duty spigots for strength and durability.

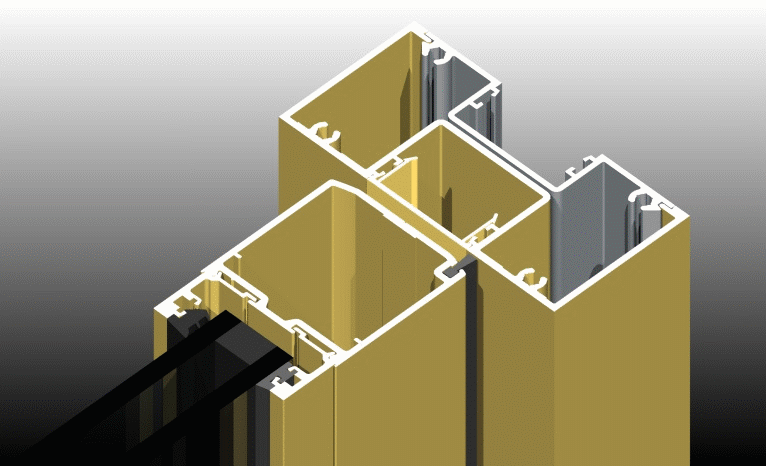

Stiles

True french meeting stile option available.

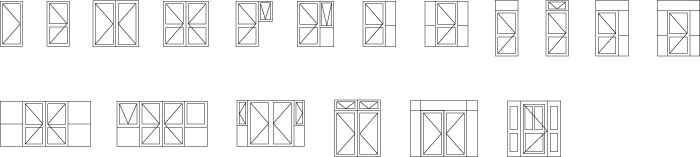

Action

Doors can be hinged or pivoted as shown.

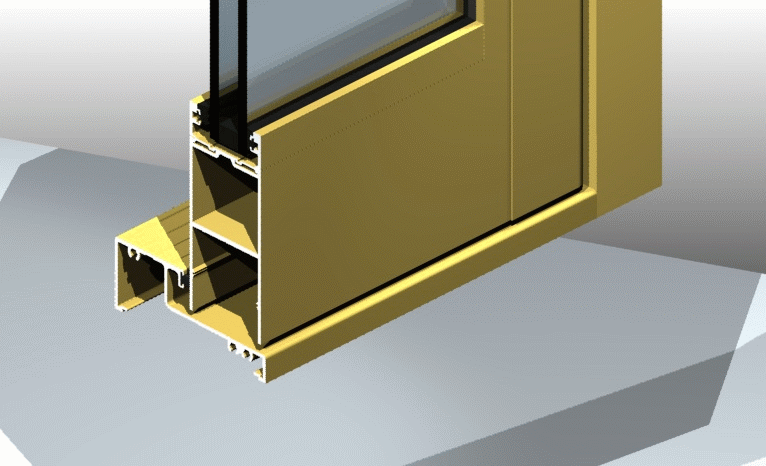

Sills

Variety of thresholds and full sub-framing available.

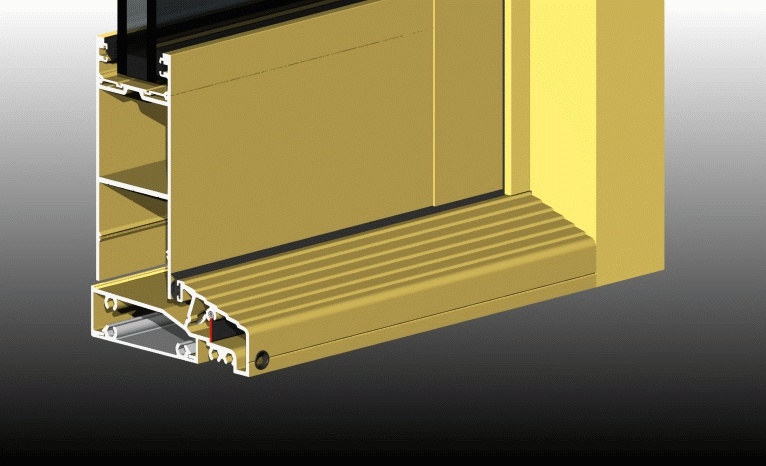

Threshold

Unique open-in threshold with self-draining feature.

Compatible Hardware

AWS hardware options designed for use with Series 52

ANDO™

Hinged Door Lock
MIRO™

Hinged Door Lock
ICON™

Hinged Door Lock
