    Commercial Framing | Series 607

    150mm Face Line Framing

Key Features / Performance Characteristics

  • Series 607 FaceLINE™ framing system has been designed to complement Series 606 FrontGLAZE™ and 702 & 704 SlideMASTER™ sliding doors.

  • Glass close to the external face reduces the potential of dust build-up on transom ledges.

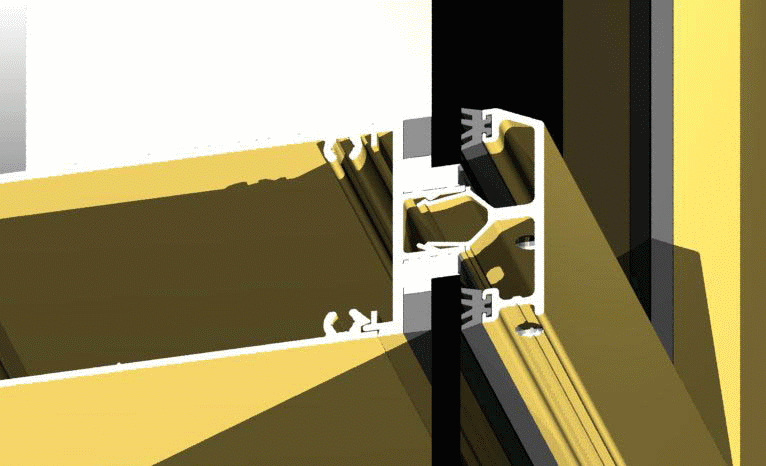

  • Interlocking split mullions to accommodate expansion and contraction.

  • The 150 x 50mm framing system has a variety of transom and mullion alternatives.

  • Will accept glass from 6 to 10.38mm thickness.

  • Full perimeter frame allows this system to be fitted into sub-head, sub-sill and sub-jambs if required.

  • Four snap-on cover options.

  • Structurally glazed mullions or transoms available.

  • Designed for one- or two-storey shopfronts, vertical should not exceed the stock length. This is not a curtain wall system.

Render 607
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 10.38mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

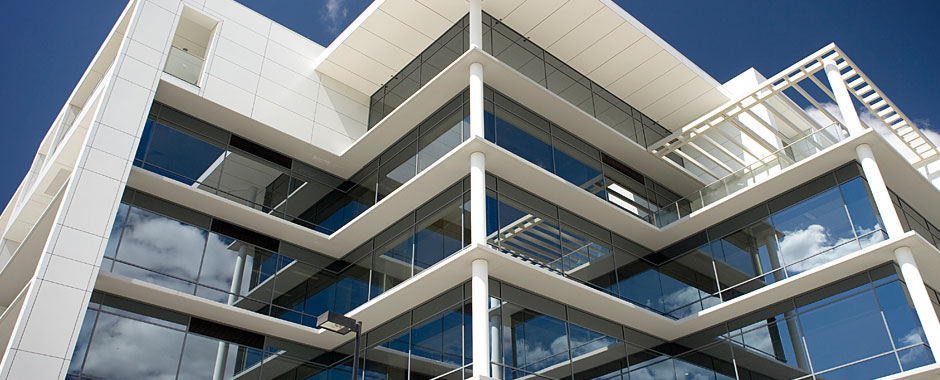

Series 607 FaceLINE™ framing external view

Features Overview

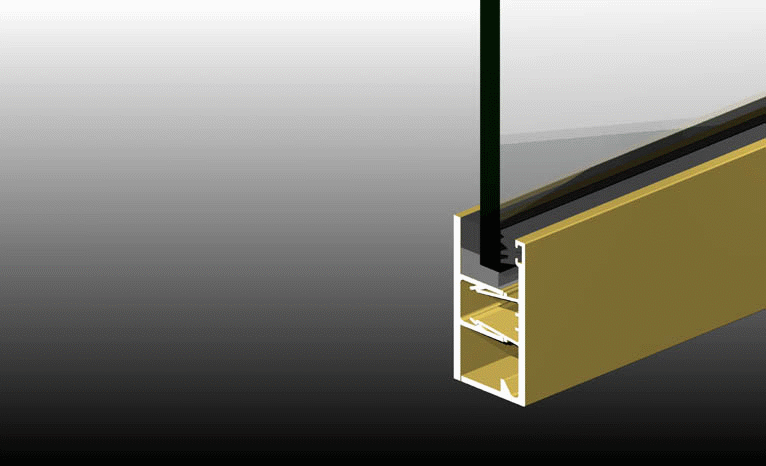

  • Consistency

    Consistent glazing line is a feature of all AWS Commercial products.

    Consistent glazing line is a feature of all AWS Commercial products.<br /> Consistent glazing line is a feature of all AWS Commercial products.<br />
  • Flexibility

    A varying array of alternative bases and covers available.

    A varying array of alternative bases and covers available.<br /> A varying array of alternative bases and covers available.<br />

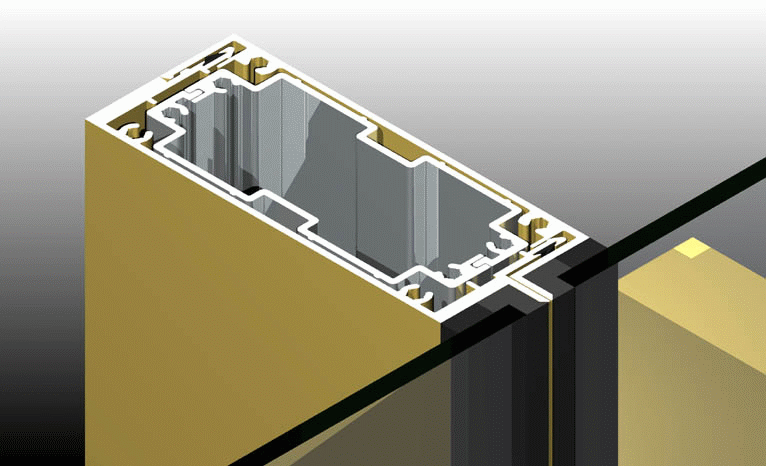

  • Mullions

    Various mullion details for site wind load conditions. Raised, flat or no cover bead.

    Various mullion details for site wind load conditions. Raised, flat or no cover bead. Various mullion details for site wind load conditions. Raised, flat or no cover bead.

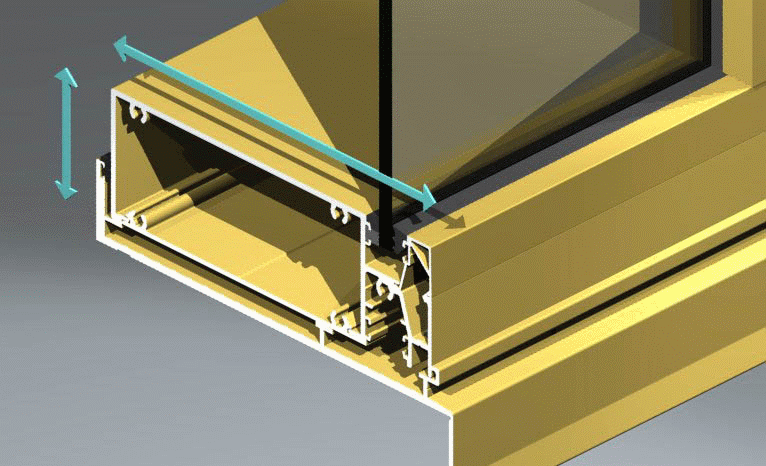

  • Sub-Sill

    Dedicated sub-sill with central support leg.

    Dedicated sub-sill with central support leg.<br /> Dedicated sub-sill with central support leg.<br />
  • Drainage

    Concealed drainage designed to shed water more efficiently.

    Concealed drainage designed to shed water more efficiently.<br /> Concealed drainage designed to shed water more efficiently.<br />

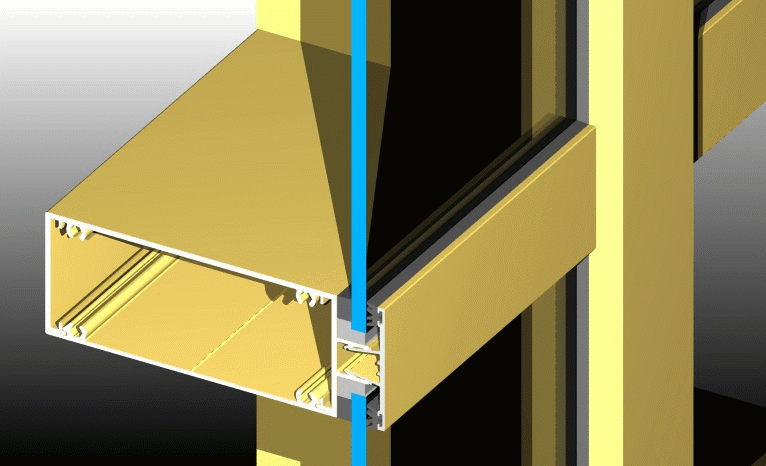

  • Transom Cover Options

    Transoms can have raised splayed or flat covers.

    Transoms can have raised splayed or flat covers.<br /> Transoms can have raised splayed or flat covers.<br />
