Key Features / Performance Characteristics

Series 620 CentreGLAZE™ wide shopfront framing - 150mm wide frame with the glazing pocket offset is ideal for frames spanning more than 3m high.
Glazing pocket is offset to the front and allows use of 102mm or 80mm transoms from Series 400 and Series 80.
True captive glazing wedge allows reglazing from inside - ideal in elevated applications.
The captive wedge also offers increased security.
Wide range of sub-sills to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
Sub-head and two piece sub-jambs.
Hinged door threshold.
Awning sash inlay adapters.
Designed for use with Series 50, 51 and 52 commercial doors.
Compatible with Commercial Series and Architectural Series systems.

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

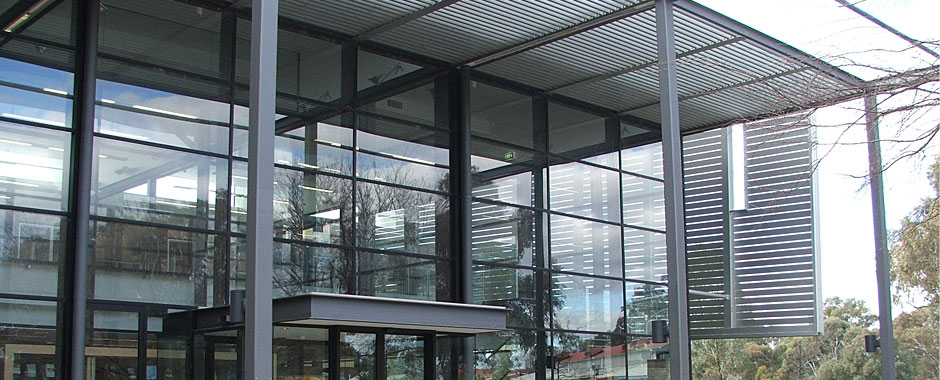

Series 620 CentreGLAZE™ framing external view

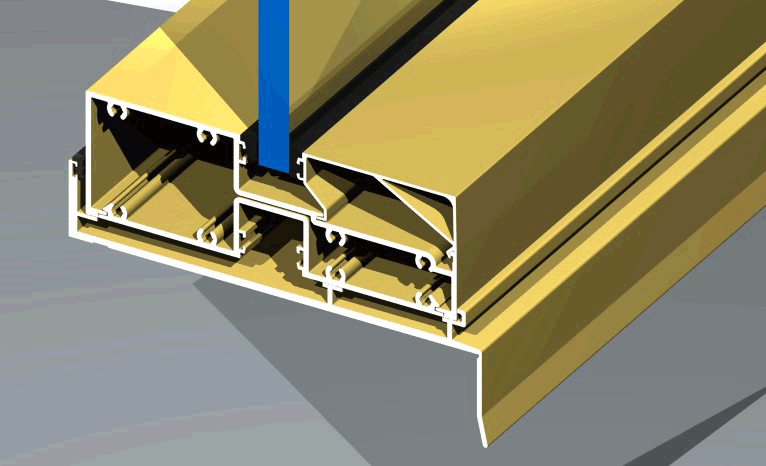

Sill Detail

All 620 framing is designed to accept thick glass up to 15.38mm.

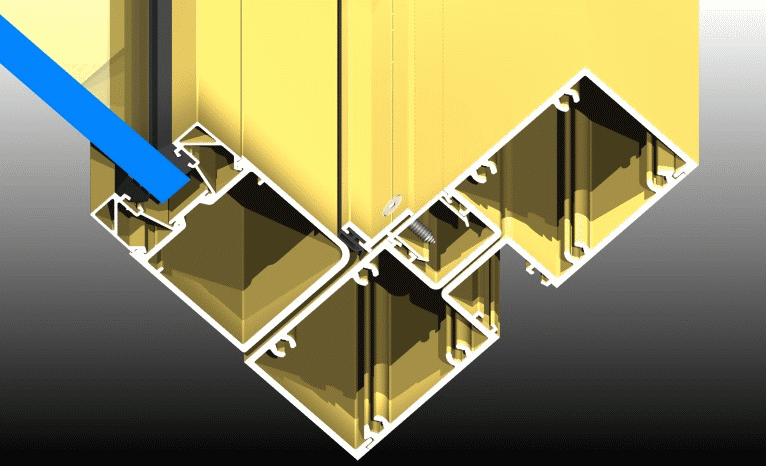

Hinged Doors

Can accept all commercial hinged doors. Extra strength gained by hinge backing plate.

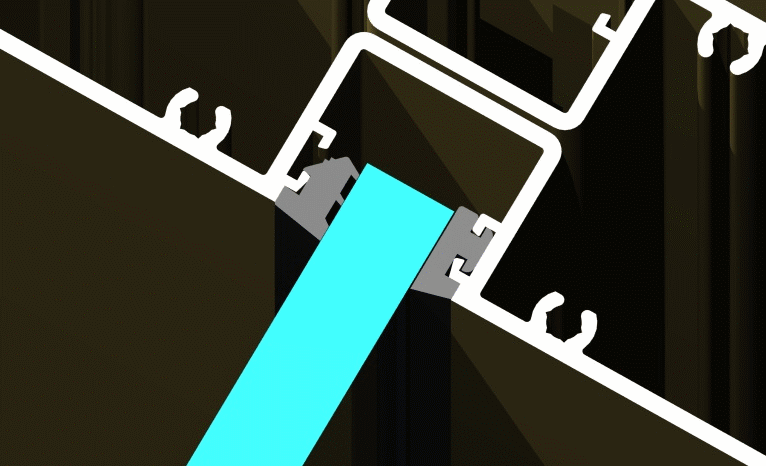

Glazing Detail

Frame designed to accept captive wedge or spacer.

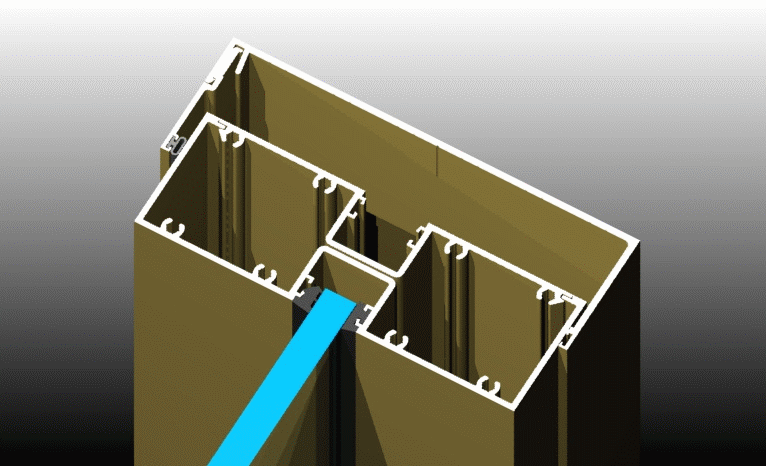

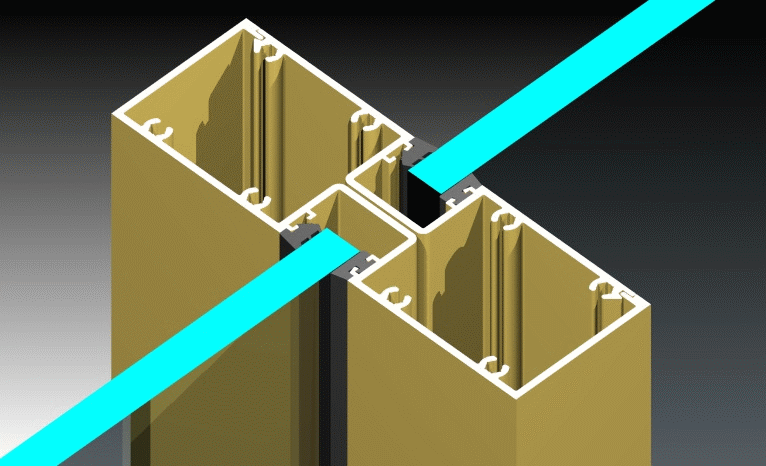

Mullions

Various mullion details for site windload conditions.
Door Thresholds

In addition to external and low rise sills, the internally opening threshold is self-draining.
Sub-Framing

Sub-sill, head and jambs available.
