Elevate™ Aluminium Systems

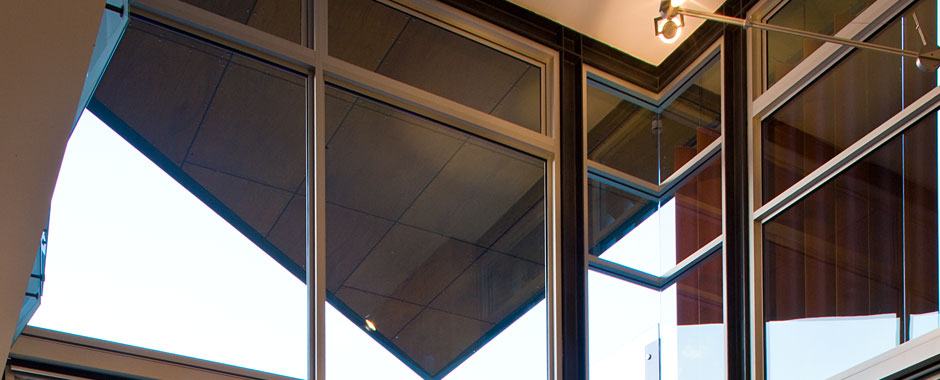

  • Hero 624
    Commercial Framing | Series 624

    Double Glazed Centre Glazed 150mm Framing

Key Features / Performance Characteristics

  • Frame and glazing pocket designed to be accept 24mm insulating glass units (IGUs) with required 12mm bite plus another 4mm to cater for glass production and installation tolerances.

  • Compatible with a large range of other Elevate™ framing systems, including sliding doors.

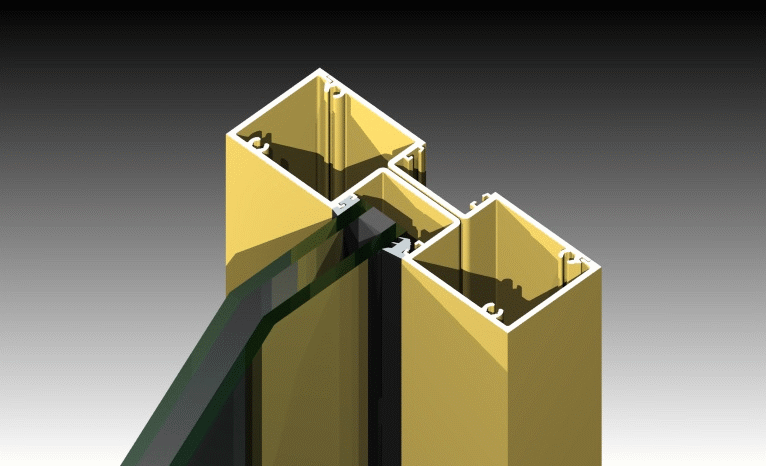

  • Snap together and interlocking expansion mullions.

  • Matching 50mm thick hinged, pivot or sliding door designed to accept 24mm thick double glazing and a large variety of industry standard hardware.

  • Two fully beaded midrail sizes to choose from (125mm and 200mm deep).

  • Concealed overhead transom also designed to accept 24mm IGUs.

  • We can insert awning sashes into the framing - if required. These sashes will also accept 24mm IGUs

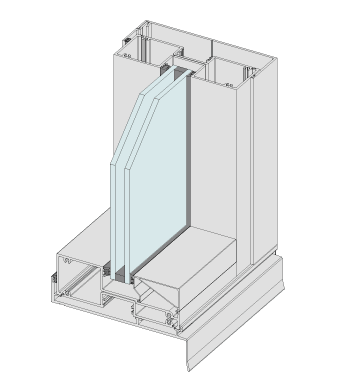

Render 624
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 24mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au


Series 624 CentreGLAZE™ framing external view

Features Overview

  • Beading

    Sill beads are reinforced for extra strength and security.

    Sill beads are reinforced for extra strength and security.<br /> Sill beads are reinforced for extra strength and security.<br />

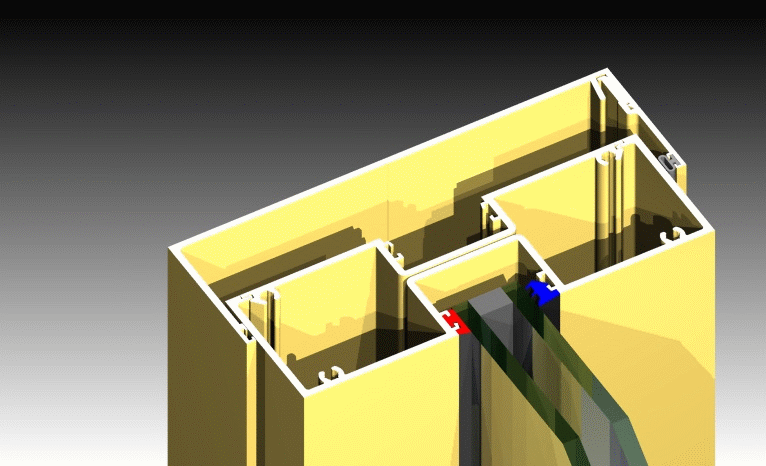

  • Captive Wedges

    Can accept both captive and roll-in wedges for the ease of site glazing.

    Can accept both captive and roll-in wedges for the ease of site glazing.<br /> Can accept both captive and roll-in wedges for the ease of site glazing.<br />

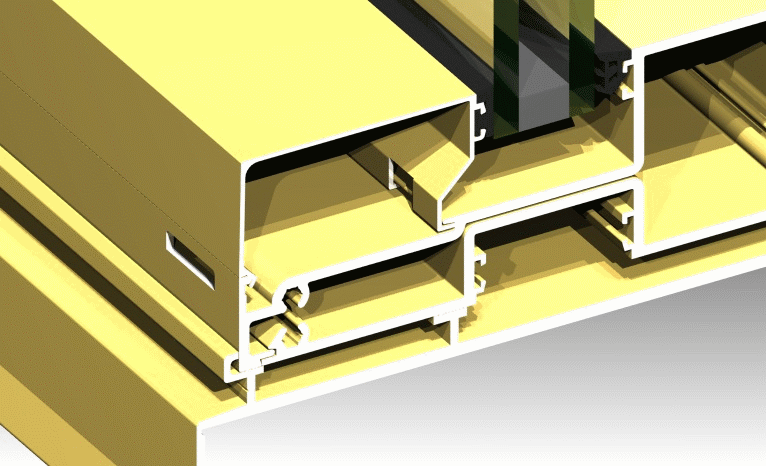

  • Sub-Sill

    Specifically designed sub-sill with central support leg.

    Specifically designed sub-sill with central support leg.<br /> Specifically designed sub-sill with central support leg.<br />
  • Sub-Jamb

    Sub-jambs and sub-heads designed for easy installation.

    Sub-jambs and sub-heads designed for easy installation.<br /> Sub-jambs and sub-heads designed for easy installation.<br />
  • Support

    Central leg supports the ever increasing weights of insulated glass units.

    Central leg supports the ever increasing weights of insulated glass units. Central leg supports the ever increasing weights of insulated glass units.
  • Matching Door

    We have a matching heavy duty, 50mm thick door designed to accept 24mm IGUs.

    We have a matching heavy duty, 50mm thick door designed to accept 24mm IGUs. We have a matching heavy duty, 50mm thick door designed to accept 24mm IGUs.
