Architectural Hinged Door
Key Features / Performance Characteristics
-
Entry door framing system designed to accept heavy duty 50mm thick commercial swing doors.
-
50mm wide door options including fully beaded. These heavy duty 50mm thick commercial doors are ideal for oversize door panels.
-
Series 52 swing doors will accept 24mm thick insulating glass.
-
Three midrail sizes to choose from (50, 115 and 125mm deep).
-
Two door thresholds cover both internal and external swing hinged doors.
-
Sub-sills available for high performance installations.
-
Snap-fit nailing fin adapter for brick veneer and cavity brick installations.
-
Will accept awning and casement sashes.
-
Recessed clean fixed sidelights and highlights pocket glazed similar to commercial framing.
| Maximum Panel Height* | 3000mm |
|---|---|
| Maximum Panel Width* | 1000mm |
| Maximum Glass Thickness | ≤ 24mm |
*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

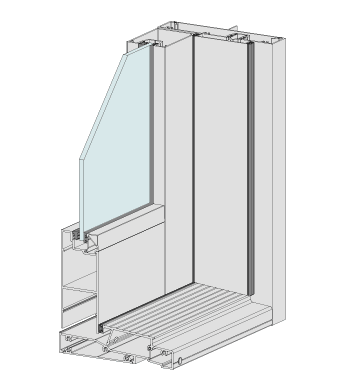

Series 650 Architectural Hinged door external view
Features Overview
-

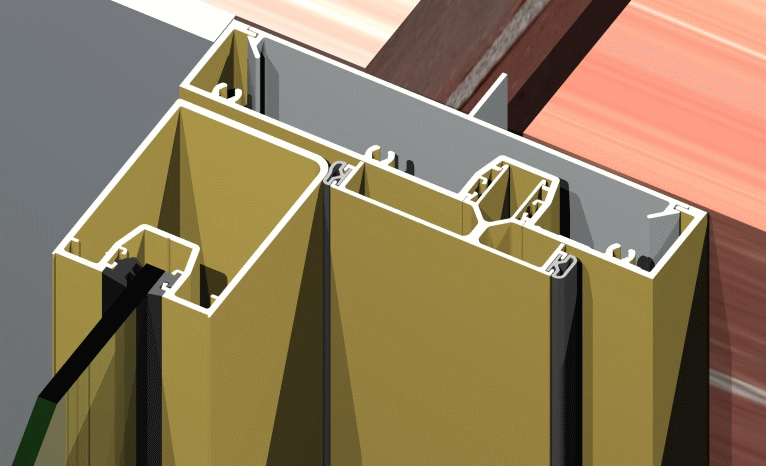

Door Stop
Unique double sided door stops allow for easy fitting of security door frame.
-

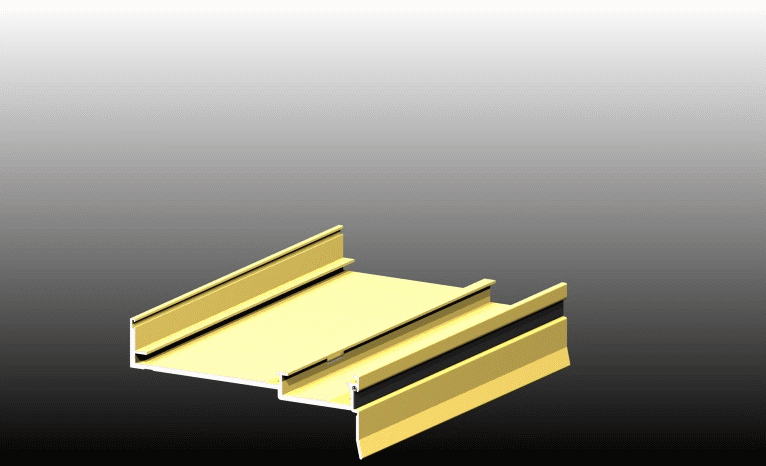

Sill Type
Externally opening door sill.
-
Sill Type
Internally opening door sill.
-

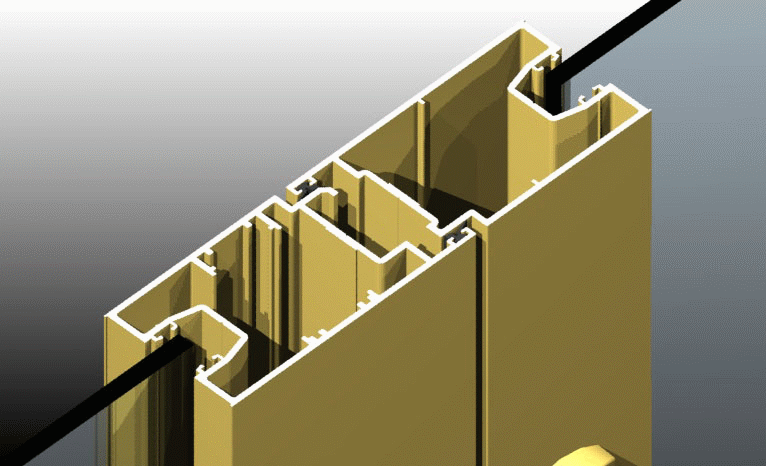

Door Stiles
Dedicated french door meeting stiles an option.
-

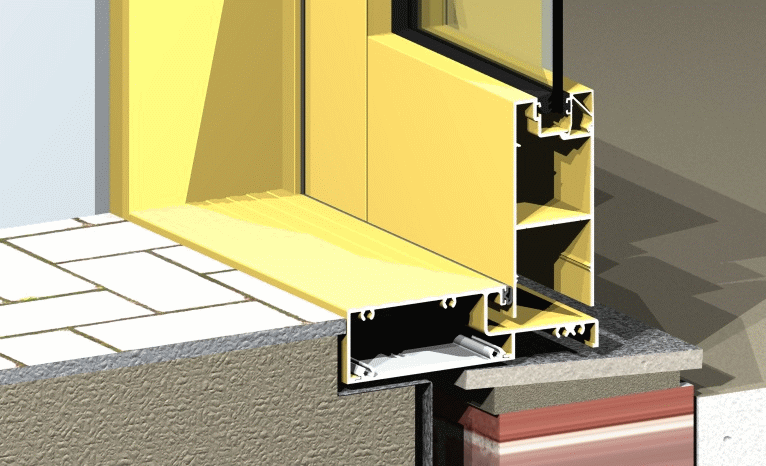

Sub-Framing
Designed to accept sub-sill and sub-framing as required.
-

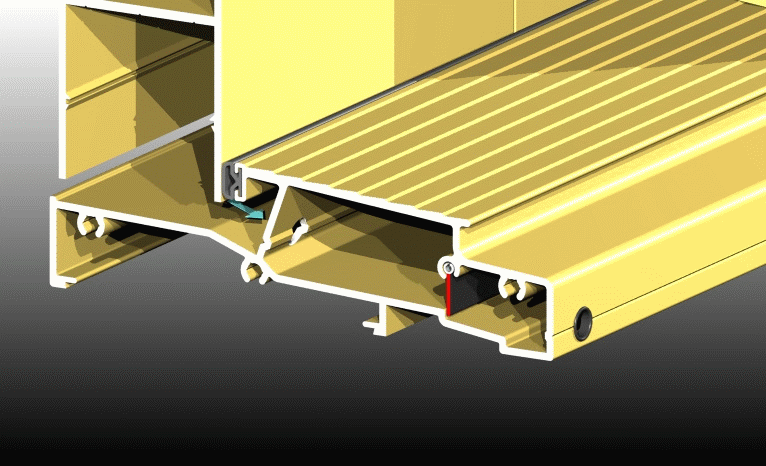

Speciality
Unique self-draining sills.
Compatible Hardware
AWS hardware options designed for use with Series 650

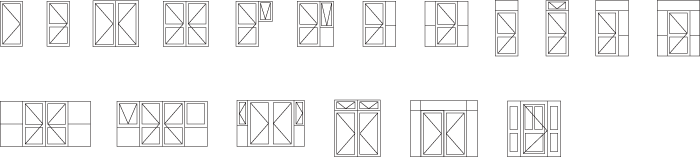

Typical Configurations
Related Products
AWS systems designed to share similar aesthetic and performance qualities to Series 650
Alternative Systems
AWS systems which offer a similiar function to Series 650 but differ in aesthetics and performance.
