Architectural Series | Series 702
SlideMASTER™ Sliding Door (External Sliding)

Key Features / Performance Characteristics

The Series 702 high performance sliding door has been tested for compliance with the relevant Australian Standards. Achieved a very high water resistance of >600Pa and complied with the air conditioning requirements of the standard.
The extra strong multi-hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas.
There are a large variety of door combinations possible XXF, FXX, XF, FX, FXF, XFF, FFX, FXXF and FXXXXF. A 90º corner unit FX^XF and FXX^XXF also available.
Compatible with the high performance Series 406 / 606 and 426 / 626 FrontGLAZE™ framing.
Doors can be fitted with surface mounted deadlock, mortice lock or multi-point mortice lock.
Doors run on heavy duty double bogey wheel carriages.
Aluminium sub-sills are available and should be used in all installations.
Doors can be fitted with internal sliding or roller fly doors.

Maximum Panel Height*	3000mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤ 24mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

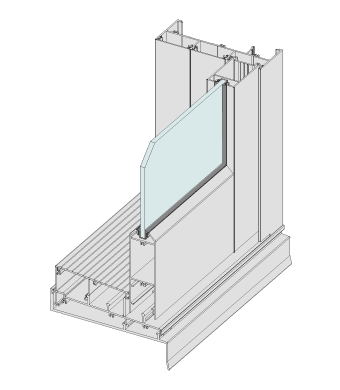

Series 702 SlideMASTER™ (external sliding) Sliding door internal view

Features Overview

Sub-Framing

Sub-sill with central support leg, designed to suit.
Rails

Tall, small, beveled and square rails are all an option. Tall, square rail detailed.
Corner

90º postless internal and external corners an option.
Compatibility

Both 100mm and 150mm compatible with most AWS Commercial suites.
Glazing

Glazing options up to 25mm double glazed unit.
Interlocks

Meeting stile design changes to match required wind load.

Compatible Hardware

AWS hardware options designed for use with Series 702

ANDO™

Twin Point Surface Mounted Sliding Door Lock
ANDO™

Slimline Surface Mounted Sliding Door Lock
MIRO™

Sliding Door Pull Handle
ICON™

Sliding Door Handle
ICON™

Recessed Flush Pull
