Elevate™ Aluminium Systems
  • Hero 80
    Commercial Framing | Series 80

    Narrow 80mm Offset Framing

Key Features / Performance Characteristics

  • This 80mm offset glazed framing system has been designed to complement the 102mm CentreGLAZE™ shopfront framing system.

  • Glazing pocket designed to be compatible with industry standard but with the added features of a truly captive glazing wedge option and the ability to screw fix door midrails to framing without having to go through the back of the pocket.

  • Three 50mm wide door options including fully beaded.

  • Six awning/casement sash types can be inlaid into this framing system with dedicated inlay adaptors and chain winder base.

  • ClearVENT™ sashless double-hung can be inlaid into both framing and door panels, refer Series 464 for more details.

  • Three midrail sizes to choose from (50, 115 and 125mm deep).

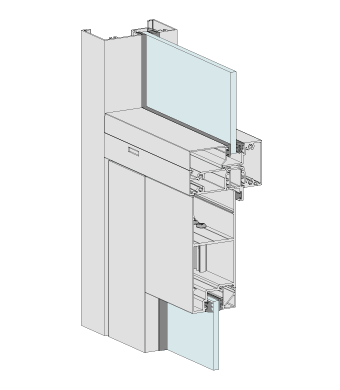

Render 80
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 10.38mm

*Subject to individual site conditions and wind loads.
Contact AWS Technical Support for more information,
e-mail techsupport@awsaustralia.com.au

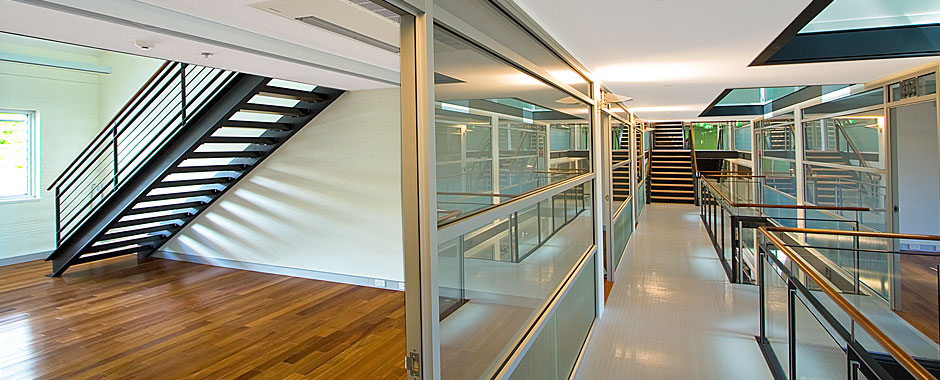

Series 80 Narrow Offset framing external view

Features Overview

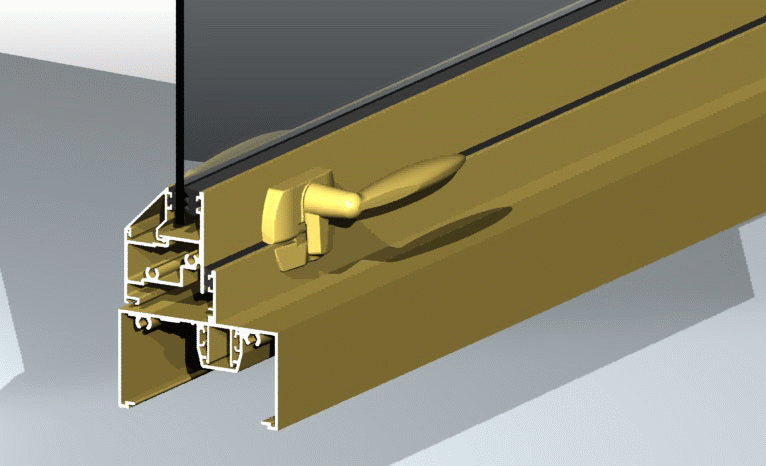

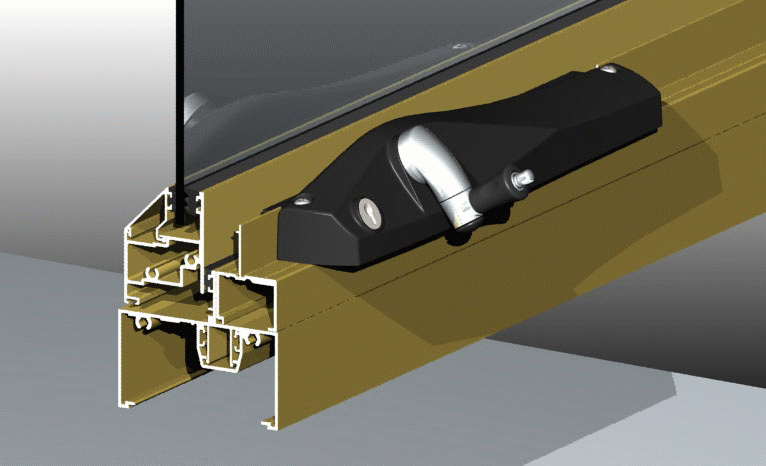

  • Awning Hardware

    Awning sash inlay can be operated with cam handles, chain winders and concealed electric motors.

    Awning sash inlay can be operated with cam handles, chain winders and concealed electric motors. Awning sash inlay can be operated with cam handles, chain winders and concealed electric motors.
  • Awning Sashes

    Can accept various types of awning sashes.

    Can accept various types of awning sashes.<br /> Can accept various types of awning sashes.<br />

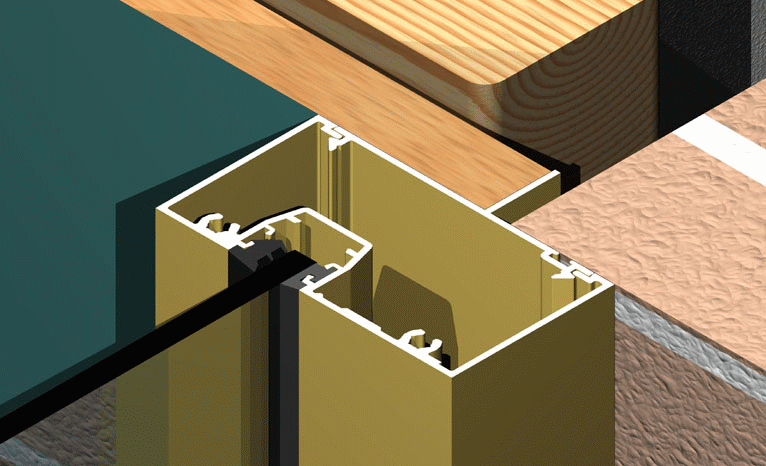

  • Glazing Line

    Series 80 maintains the same glazing line as 400 series framing, with a variety of jamb options.

    Series 80 maintains the same glazing line as 400 series framing, with a variety of jamb options. Series 80 maintains the same glazing line as 400 series framing, with a variety of jamb options.

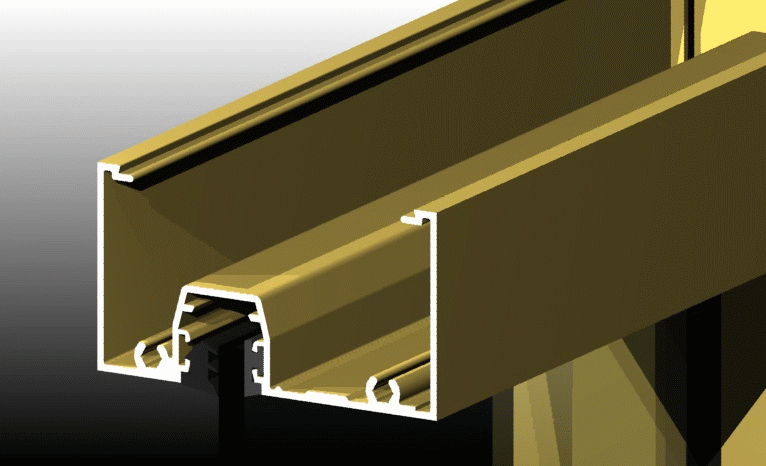

  • Internal Partioning

    Series 80 framing is also extremely well suited for high quality internal partitioning.

    Series 80 framing is also extremely well suited for high quality internal partitioning. Series 80 framing is also extremely well suited for high quality internal partitioning.

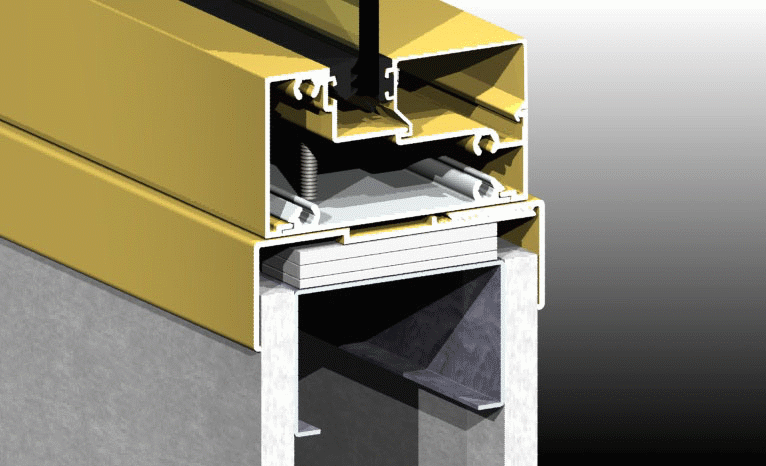

  • Sub-frames

    We offer sub-head and sub-sill to ensure water resisting installations.

    We offer sub-head and sub-sill to ensure water resisting installations.<br /> We offer sub-head and sub-sill to ensure water resisting installations.<br />

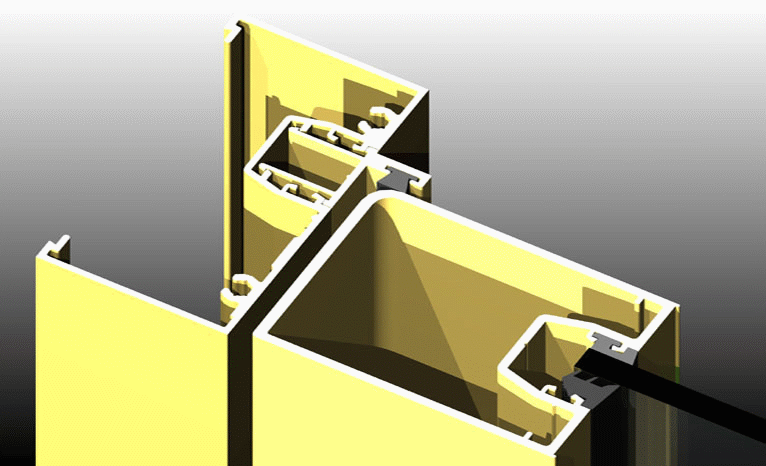

  • Secure Hinge Fixing

    Series 80 utilises hinge backing plates for secure fixing.

    Series 80 utilises hinge backing plates for secure fixing.<br /> Series 80 utilises hinge backing plates for secure fixing.<br />

Feature Projects

Valhalla Cinema

Glebe's iconic Arthouse Cinema becomes Sydney's newest boutique office. This stunning and sensitive redevelopment showcases the diversity of Elevate™ Aluminium Systems framing.

Once a magnet for Sydney's most discerning cinema-lovers, Glebe's Valhalla Theatre survived from 1938 until its eventual closure in 2005.

In 2006, property developer WProperty purchased the site, with an eye to transforming it into contemporary commercial real estate.

Find out more

Download the project PDF to read more about this product


Alternative Systems

AWS systems which offer a similiar function to Series 80 but differ in aesthetics and performance.
